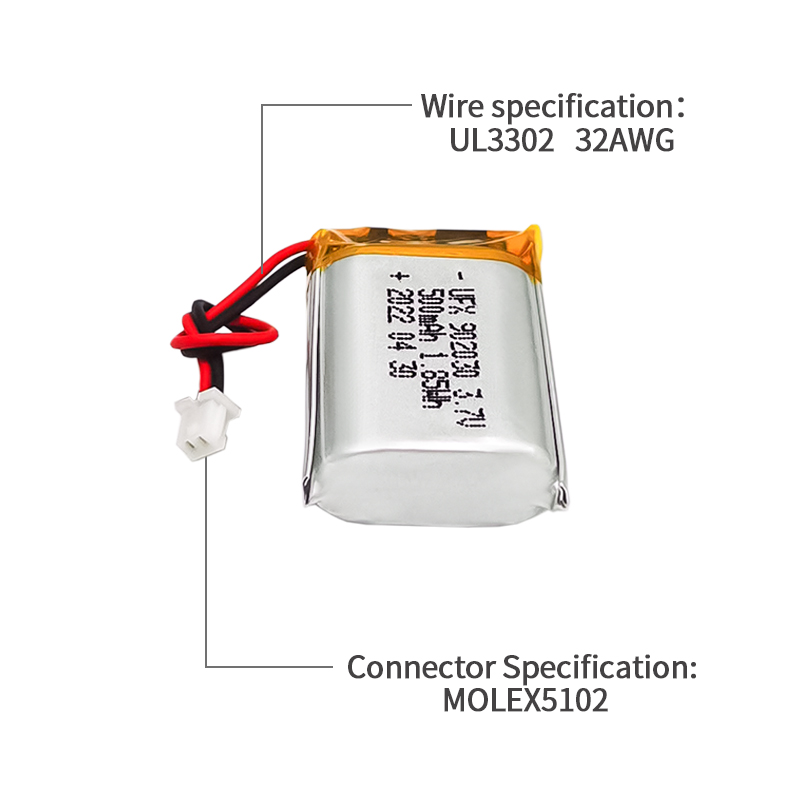

Specs of UFX902030 500mAh 3.7V
| 1、Mechanical Characteristics | |||
| Cell: | UFX902030 | PCM: | Yes |
| NTC: | No | Weight: | appr.9.6g |
| Configuration | 1S1P | ||
| 2、Electrical Specification |
|||
| Capacity: | 500mAh | Nominal Voltage: | 3.7V |
| Energy: | 1.85Wh | Internal Impedance: | less than 180mΩ |
| Charge Voltage: |
4.2V | Discharge Cut Off: |
2.75V |
| Max. Charge Current: |
500mA | Max. Discharge Current: |
500mA |
| Standard Charge Current: | 250mA | Standard Discharge Current: |
250mA |
| Charge Temp. Range: | 10°C to 45°C | Discharge Temp. Range: | -20°C to 60°C |
| Storage Temp. Range |
1 year at -20℃ to +30℃ | Cycle life: | 100 cycles ≥92% |
| 3 moths at -20℃ to +45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||

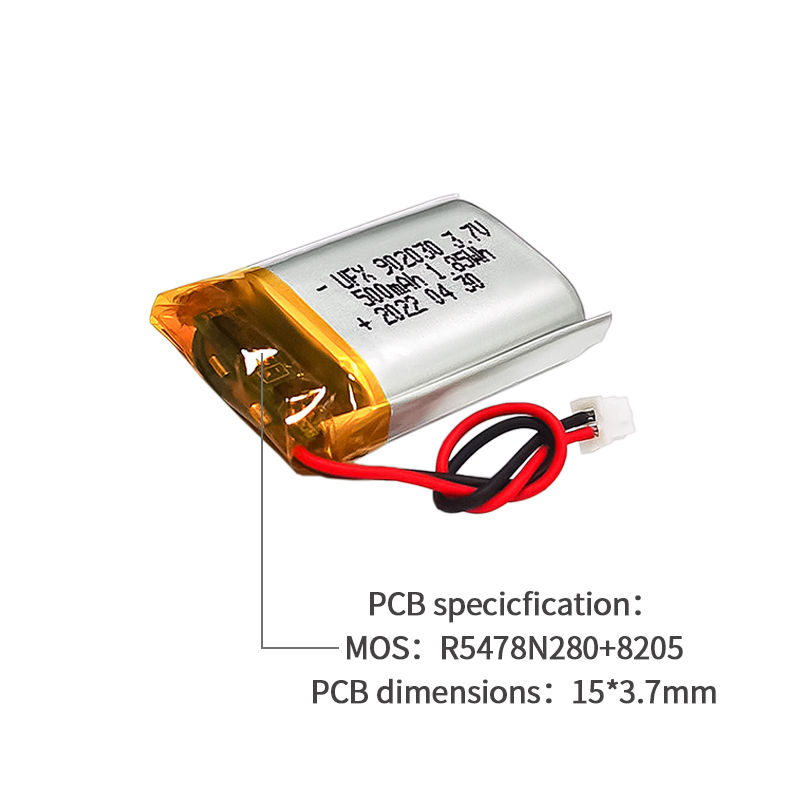

| 3、Cell protection | |||
| Overcharge Detection ： |
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection： |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection： |
2.5A to 4.0A (9 to 15msec. delay) | Short protection： |
Yes |
| 4、Discharge Rate Characteristics | 5、Cycle life Characteristics | ||
 |
 |
||
 |
 |
| Model | Nominal(V) | Capacity | Certificate | Other Certificate | Dimensions | Spec Sheet | |||
| UFX102040 | 3.7V | 750mAh | KC | UL1642 | 10*20*42mm | Download | |||
| UFX102050 | 3.7V | 1000mAh | KC | CB/PSE/UL1642/UN38.3/ROHS/CE | 10*20*52mm | Download | |||
| UFX102055 | 3.7v | 1100mAh | KC | UL1642 | Download | ||||
| UFX102540 | 3.7V | 1200mAh | KC | UL1642(TUV) /CE/CB/UL2054/UM38.3 | 10*25*42mm | Download | |||
| UFX103040 | 3.7V | 1200mAh | KC | UL1642/CE/PSE/UN38.3/ROHS | 10*30*40mm | Download | |||
| UFX103040-3C | 3.7V | 1200mAh | KC | UL1642/UL2054/WERCSmart/PSE/BIS | 10*30*42mm | Download | |||
| UFX103048 | 3.7V | 1400mAh | KC | ROHS/UN38.3/CE/UL1642 | 10*30*50mm | Download | |||
| UFX103450 | 3.7V | 1800mAh | KC | UN38.3/PSE/ROHS/UL1642/CB | 10*34*52mm | Download | |||
| UFX104050 | 3.7V | 2300mAh | KC | CB/UN38.3/ROHS/UL(tuv）1642 | 10*40*52mm | Download | |||
| UFX104060 | 3.7V | 2800mAh | KC | 10*40*62mm | Download | ||||
| UFX104065 | 3.7V | 3200mAh | KC | 10*40*67mm | Download | ||||
| UFX105050 | 3.7V | 3000mAh | KC | UL1642 | 10*50*52mm | Download | |||
| UFX105060 | 3.7V | 3500mAh | KC | 10*50*62mm | Download | ||||
| UFX105065 | 3.7V | 4000mAh | KC | 10*50*67mm | Download | ||||
| UFX105085 | 3.7V | 5000mAh | KC | UL1642/UN38.3 | 10*50*87mm | Download | |||
| UFX105573 | 3.7V | 5000mAh | KC | 10*55*75mm | Download | ||||
| UFX124040 | 3.7V | 2000mAh | KC | EN62133 | 12*40*42mm | Download | |||
| UFX124060 | 3.7V | 3600mAh | KC | 12*40*62mm | Download | ||||
| UFX252040 | 3.7V | 170mAh | KC | 2.5*20*42mm | Download | ||||
| UFX301525 | 3.7V | 80mAh | KC | 3*15*27mm | Download | ||||
| UFX303040 | 3.7V | 320mAh | KC | 3*30*42mm | Download | ||||
| UFX303055 | 3.7V | 500mAh | KC | UN38.3/UL1642 | 3*30*57mm | Download | |||
| UFX373050 | 3.7V | 550mAh | KC | UN38.3 | 3.7*30*52mm | Download | |||
| UFX401242 | 3.7V | 100mAh | KC | 4*12*44mm | Download | ||||
| UFX401120 | 3.7V | 55mAh | KC | CB/UL1642/UN38.3 | 4*11*22mm | Download | |||
| UFX401230 | 3.7V | 110mAh | KC | 4*12*32mm | Download | ||||
| UFX401235 | 3.7V | 120mAh | KC | UL1642 | 4*12*37mm | Download | |||
| UFX401430 | 3.7V | 120mAh | KC | 4*14*32mm | Download | ||||
| UFX401430 | 3.7V | 130mAh | KC | 4*14*32mm | Download | ||||
| UFX402065 | 3.7V | 550mAh | KC | 4*20*67mm | Download | ||||
| UFX402780 | 3.7V | 1000mAh | KC | UL(tuv）1642/ROHS/CB | 4*27*82mm | Download | |||
| UFX402895 | 3.7V | 1200mAh | KC | 4*28*97mm | Download | ||||
| UFX402934 | 3.7V | 350mAh | KC | 4*29*36mm | Download | ||||
| UFX403441 | 3.7V | 650mAh | KC | 4*34*43mm | Download | ||||
| UFX501447 | 3.7V | 280mAh | KC | UN38.3 | 5*14*49mm | Download | |||
| UFX501535 | 3.7V | 200mAh | KC | 5*15*37mm | |||||
| UFX502025 | 3.7V | 200mAh | KC | UN38.3 | 5*20*27mm | ||||
| UFX502030 | 3.7V | 300mAh | KC | CE/UL(tuv）1642 | 5*20*32mm | ||||
| UFX502535 | 3.7V | 300mAh | KC | UN38.3/UL1642 | 5*25*37mm | ||||
| UFX502065 | 3.7V | 600mAh | KC | UL1642 | 5*20*67mm | ||||
| UFX502248 | 3.7V | 500mAh | KC | UL1642 | 5*22*50mm | ||||
| UFX502530 | 3.7V | 350mAh | KC | 5*25*32mm | |||||
| UFX502535 | 3.7V | 400mAh | KC | 5*25*37mm | |||||
| UFX502545 | 3.7V | 600mAh | KC | 5*25*47mm | |||||
| UFX502728 | 3.7V | 360mAh | KC | 5*27*30mm | |||||
| UFX503035 | 3.7V | 500mAh | KC | 5*30*37mm | |||||
| UFX503040 | 3.7V | 600mAh | KC | 5*30*42mm | |||||
| UFX503048 | 3.7V | 750mAh | KC | CB/UN38.3/UL(tuv）1642/ROHS | 5*30*50mm | ||||
| UFX503759 | 3.7V | 1200mAh | KC | UL1642/UN38.3/CE/CB | 5*37*61mm | ||||
| UFX504040 | 3.7V | 800mAh | KC | 5*40*42mm | |||||
| UFX505050 | 3.7V | 1500mAh | KC | 5*50*52mm | |||||
| UFX 505573 | 3.7V | 2500 mAh | KC | UL(tuv)1642 | 5*55*75mm | ||||
| UFX506090 | 3.7V | 3000 mAh | KC | UL1642 | 5*60*92mm | ||||
| UFX523450 | 3.7V | 1000 mAh | KC | CB/UN38.3/ROHS/UL(tuv)1642/UL(tuv)2054 | 5.2*34*52mm | ||||
| UFX552045 | 3.7V | 450mAh | KC | 5.5*20*47mm | |||||
| UFX601535 | 3.7V | 250mAh | KC | UN38.3 | 6*15*37mm | ||||
| UFX601720 | 3.7V | 150mAh | KC | 6*17*22mm | |||||
| UFX602030 | 3.7V | 300mAh | KC | UL1642/UN38.3/加洲65/CE/EN62133/ICE62133 | 6*20*32mm | ||||
| UFX602035 | 3.7V | 400mAh | KC | UL1642/UN38.3 | 6*20*37mm | ||||
| UFX602040 | 3.7V | 400mAh | KC | 6*20*40mm | |||||
| UFX602040 | 3.7V | 450mAh | KC | 6*20*47mm | |||||
| UFX602047 | 3.7V | 540mAh | KC | 6*20*49mm | |||||
| UFX602530 | 3.7V | 450mAh | KC | CE | 6*25*32mm | ||||
| UFX602535 | 3.7V | 500mAh | KC | IEC62133/UL(tuv)1642 | 6*25*37mm | ||||
| UFX603030 | 3.7V | 500mAh | KC | UL1642/UN38.3 | 6*30*32mm | ||||
| UFX603040 | 3.7V | 680mAh | KC | UL1642 | 6*30*42mm | ||||
| UFX603048 | 3.7V | 900mAh | KC | UL1642/UN38.3/IEC62133/CE | 6*30*50mm | ||||
| UFX603450 | 3.7V | 1200mAh | KC | UL1642 | 6*34*52mm | ||||
| UFX604050 | 3.7V | 1500mAh | KC | UL1642 | 6*40*52mm | ||||
| UFX604060 | 3.7V | 1700mAh | KC | UL1642 | 6*40*62mm | ||||
| UFX604070 | 3.7V | 2000mAh | KC | 6*40*72mm | |||||
| UFX605060 | 3.7V | 2000mAh | KC | CB/UN38.3 | 6*50*62mm | ||||
| UFX605080 | 3.7V | 3000mAh | KC | UL(tuv）1642/UN38.3 | 6*50*82mm | ||||
| UFX605473 | 3.7V | 3000mAh | KC | 6*54*75mm | |||||
| UFX606090 | 3.7V | 4000mAh | KC | UL(tuv）1642/ROHS/UN38.3 | 6*60*92mm | ||||
| UFX634169 | 3.7V | 2000mAh | KC | 6.3*41*69mm | |||||
| UFX641447 | 3.7V | 400mAh | KC | 6.4*14*47mm | |||||
| UFX651725 | 3.7V | 230mAh | KC | 6.5*17*27mm | |||||
| UFX653040 | 3.7V | 800mAh | KC | 6.5*30*42mm | |||||
| UFX654065 | 3.7V | 2000mAh | KC | UL1642/PSE/UN38.3/CE/CB | 6.5*40*67mm | ||||
| UFX686770 | 3.7V | 4000mAh | KC | 6.8*67*72mm | |||||
| UFX701330 | 3.7V | 200mAh | KC | ROHS/CE/UN38.3/UL(tuv）1642 | 70*13*32mm | ||||
| UFX701488 | 3.7V | 850mAh | KC | 7*14*90mm | |||||
| UFX701535 | 3.7V | 350mAh | KC | UL(tuv）1642/CE/ROHS/UN38.3/IEC62133/PSE | 7*15*37mm | ||||
| UFX702025 | 3.7V | 300mAh | KC | CE/加洲65/UN38.3/EN62133/UL(tuv）1642 | 7*20*27mm | ||||
| UFX702060 | 3.7V | 850mAh | KC | CE | 7*20*62 mm | ||||
| UFX702248 | 3.7V | 700mAh | KC | IEC62133 | 7*22*50mm | ||||
| UFX702248 | 3.7V | 800mAh | KC | 7*22*50 mm | |||||
| UFX702257 | 3.7V | 1000mAh | KC | L(tuv）1642/UN38.3 | 7*22*59 mm | ||||
| UFX703048 | 3.7V | 1000mAh | KC | UL1642/CB/ROHS | 7*30*50mm | ||||
| UFX703440 | 3.7V | 1000mAh | KC | 7*34*50mm | |||||
| UFX706090 | 3.7V | 5000mAh | KC | UL1642 | 7*60*92 mm | ||||
| UFX721944 | 3.7V | 630mAh | KC | UL(tuv)1642 | 7.2*19*46 mm | ||||
| UFX751635 | 3.7V | 380mAh | KC | 7.5*16*37mm | |||||
| UFX702035 | 3.7V | 500mAh | KC | 7.5*20*37 mm | |||||
| UFX753450 | 3.7V | 1300mAh | KC | UN38.3 | 7.5*34*52 mm | ||||
| UFX 756077 | 3.7V | 4800mAh | KC | CB/UN38.3/UL1642 | 7.5*60*79 mm | ||||
| UFX782150 | 3.7V | 800mAh | KC | 7.8*21*52mm | |||||
| UFX801350 | 3.7V | 500mAh | KC | UL(tuv)1642 | 8*13*52 mm | ||||
| UFX 801735 | 3.7V | 500mAh | KC | UN38.3 | 8*17*37mm | ||||
| UFX802030 | 3.7V | 400mAh | KC | UL1642/PSE | 8*20*32mm | ||||
| UFX802035 | 3.7V | 500mAh | KC | 8*20*37 mm | |||||
| UFX802040 | 3.7V | 600mAh | KC | UL(tuv）1642/CE/UN38.3 | 8*20*42 mm | ||||
| UFX802050 | 3.7V | 800mAh | KC | UL(tuv)1642/CB/UN3.83/CE | 8*20*52mm | ||||
| UFX802248 | 3.7V | 1000mAh | KC | 8*22*50mm | |||||
| UFX802528 | 3.7V | 480mAh | KC | UN38.3/CE/IEC62133 | 8*25*30mm | ||||
| UFX802528 | 3.7V | 500mAh | KC | UL1642/PSE/CB | 8*25*30mm | ||||
| UFX802530 | 3.7V | 600mAh | KC | UL1642/UL2054/CB | 8*25*32mm | ||||
| UFX802535 | 3.7V | 700mAh | KC | 8*25*37mm | |||||
| UFX803035 | 3.7V | 800mAh | KC | UL(tuv)1642 | 8*30*37mm | ||||
| UFX803040 | 3.7V | 900mAh | KC | 8*30*42mm | |||||
| UFX803048 | 3.7V | 1200mAh | KC | UL(tuv)1642/CB/CE/ROHS | 8*30*50mm | ||||
| UFX803448 | 3.7V | 1300 mAh | KC | 8*34*50mm | |||||
| UFX803450 | 3.7V | 1500mAh | KC | UL1642/CB/ROHS/CE/UN38.3 | 8*34*52mm | Download | |||
| UFX804050 | 3.7V | 1800mAh | KC | 8*40*50mm | |||||
| UFX804068 | 3.7V | 2500 mAh | KC | UL1642 | 8*40*70mm | ||||
| UFX805080 | 3.7V | 4000mAh | KC | 8*50*82mm | |||||
| UFX832248 | 3.7V | 920mAh | KC | UL(tuv)1642/UN38.3/EN62133 | 8.3*22*50mm | ||||
| UFX851768 | 3.7V | 850mAh | KC | UL(tuv)1642 | 8.5*17*69mm | ||||
| UFX901428 | 3.7V | 260mAh | KC | CE/CB | 9*14*30mm | ||||
| UFX901744 | 3.7V | 680mAh | KC | 9*17*46mm | |||||
| UFX902030 | 3.7V | 500mAh | KC | UL(tuv)1642/UN38.3/CE | 9*20*32mm | ||||
| UFX902035 | 3.7V | 600mAh | KC | 9*20*37mm | |||||
| UFX902248 | 3.7V | 1050mAh | KC | UN38.3/CE/IEC62133 | 9*22*50mm | ||||
| UFX902535 | 3.7V | 800mAh | KC | UL1642 | 9*25*37mm | ||||
| UFX903450 | 3.7V | 1600mAh | KC | 9*34*52mm | |||||
| UFX951768 | 3.7V | 1200mAh | KC | UL(tuv)1642/UN38.3 | 9.5*17*69mm | ||||
| UFX955565 | 3.7V | 5000mAh | KC | UL(tuv)1642/UN38.3 | 9.5*55*67mm | ||||
| UFX3060100 | 3.7V | 2000mAh | KC | UN38.3/EN62133/GB31241/UL(tuv)1642 | 3*60*100mm | ||||
| UFX4027110 | 3.7V | 1000mAh | KC | CB | 4*27*102mm | ||||
| UFX6080130 | 3.7V | 8000mAh | KC | CB/UL1642/PSE | 6*80*132mm | ||||
| UFX9559104 | 3.8V | 8000mAh | KC | UN38.3/ROHS/UL1642/GB31241报告/EN62133/CB/BIS | 9.5*59*106mm | ||||
| UFX162027-2P | 3.7V | 700mAh | KC | ROHS | 16*20*29mm | ||||
| UFX502025-4P | 3.7V | 800mAh | KC | 21*20*27mm | |||||
| UFX604040-2S | 7.4V | 1000mAh | KC | 13*40*43mm | |||||
| UFX102050-2S | 7.4V | 1000mAh | KC | 20*20*53mm | |||||
| UFX104050-2S | 7.4V | 2500mAh | KC | 20*40*52mm | |||||
| UFX124060-2S | 7.4V | 1700mAh | KC | 12*40*63mm | |||||
| UFX503450-2S | 7.4V | 1000mAh | KC | CB/ROHS | 10*34*52mm | ||||
| UFX603030-2S | 7.4V | 500mAh | KC | CB | 12*30*32mm | ||||
| UFX603450-2S | 7.4V | 1200mAh | KC | CB/UN38.3 | 12*34*52mm | ||||
| UFX702257-2S | 7.4V | 1000mAh | KC | CB/UN38.3 | 14*22*59mm | ||||
| UFX804068-2S | 7.4V | 2500mAh | KC | CB | 16*40*70mm | ||||
| UFX6067101-3S | 11.1V | 5800 mAh | KC | CB/UN38.3/ROHS | 18*67*103mm | ||||
| UFX18650-2S2P | 7.4V | 5200mAh | KC | ||||||
| UFX18650-3S | 11.1V | 2600mAh | KC | CB/UN38.3 | |||||
