Ufine New Energy is a leading lithium-ion battery manufacturer in China. We specialize in producing high-quality rechargeable batteries for various applications, including remote control cars. Our UFX 123065 3000mAh 3.7V battery is specifically designed to meet the power requirements of remote control cars, providing long-lasting and reliable performance.
At Ufine New Energy, we prioritize the safety and performance of our products. Our lithium-ion batteries are manufactured using advanced technology and undergo rigorous quality control processes to ensure their reliability and durability. With a capacity of 3000mAh, our batteries offer a high energy density, allowing for extended playtime and enhanced performance of remote control cars.

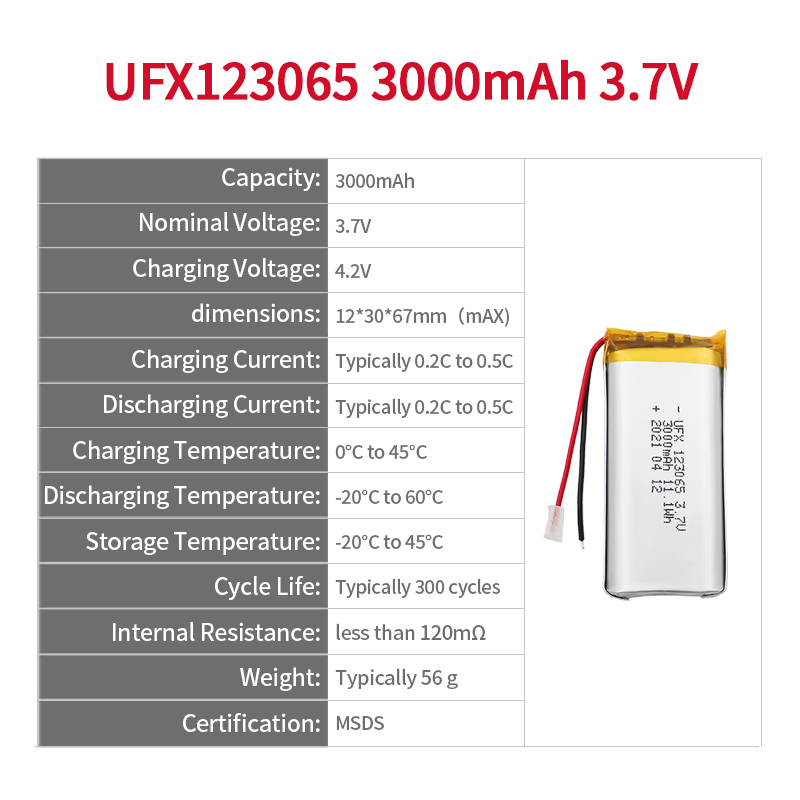

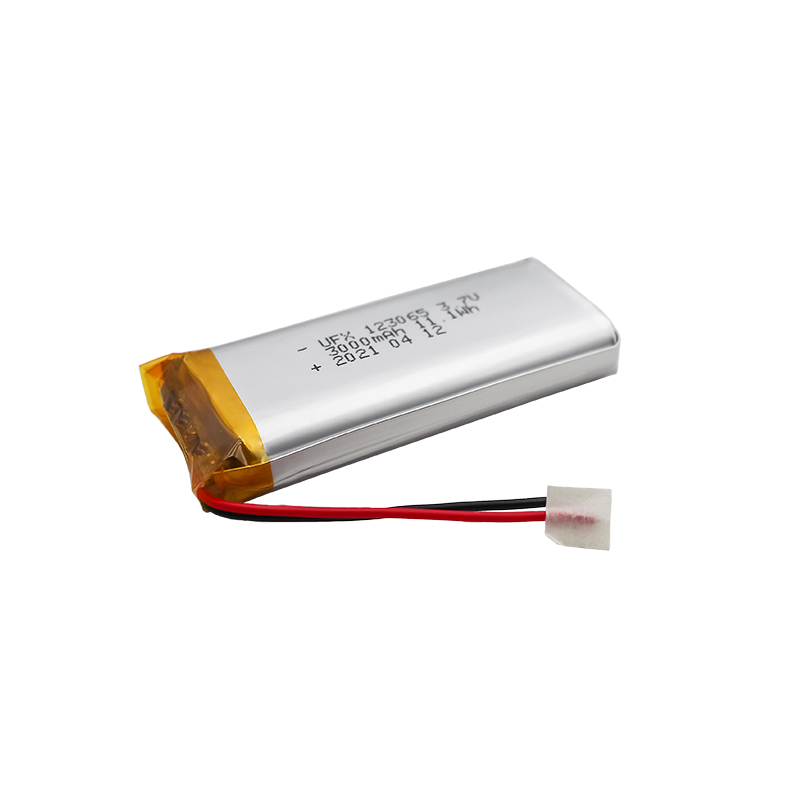

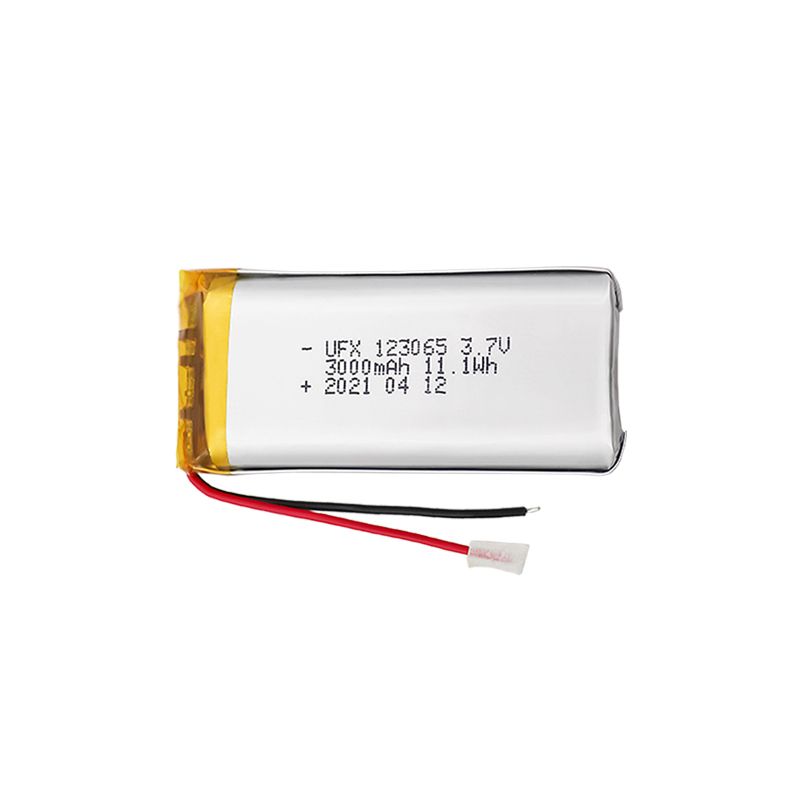

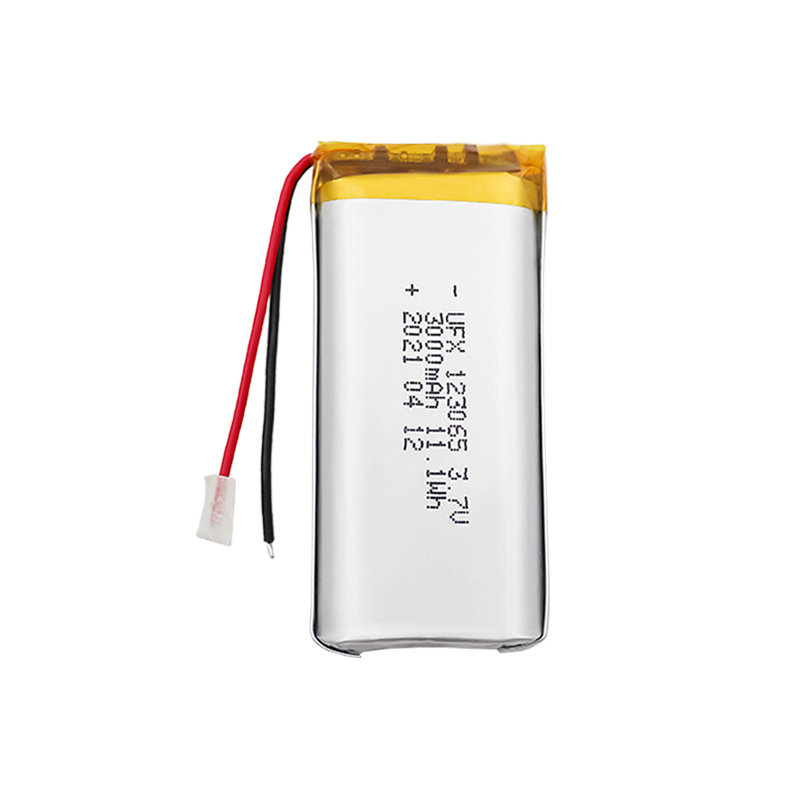

The UFX 123065 3.7V battery is a rechargeable lithium-ion battery, providing convenience and cost-effectiveness for users. With its long cycle life and stable discharge characteristics, our battery offers a reliable power source for remote control cars, ensuring uninterrupted fun and excitement.
Ufine New Energy is committed to delivering superior products and excellent customer service. We strive to meet the diverse needs of our clients by offering customized solutions and flexible production capabilities. Our team of experienced professionals ensures that every battery leaving our factory meets the highest quality standards.
Choose Ufine New Energy as your trusted lithium-ion battery manufacturer in China. Experience the power and reliability of our UFX 123065 3000mAh 3.7V rechargeable battery for remote control cars. Contact us today to discuss your battery requirements and explore the possibilities of partnering with us.
| 1、Mechanical Characteristics | |||
| Cell: | UFX123065 | PCM: | Yes |
| NTC: | No | Weight: | appr.56g |
| Configuration | 1S1P | ||
| 2、Electrical Specification |
|||
| Capacity: | 3000mAh | Nominal Voltage: | 3.7V |
| Energy: | 11.1Wh | Internal Impedance: | less than 120mΩ |
| Charge Voltage: |
4.2V | Discharge Cut Off: |
2.75V |
| Max. Charge Current: |
1500mA | Max. Discharge Current: |
1500mA |
| Standard Charge Current: | 600mA | Standard Discharge Current: |
600mA |
| Charge Temp. Range: | 10°C to 45°C | Discharge Temp. Range: | -20°C to 60°C |
| Storage Temp. Range |
1 year at -20℃ to +30℃ | Cycle life: | 100 cycles ≥92% |
| 3 moths at -20℃ to +45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||

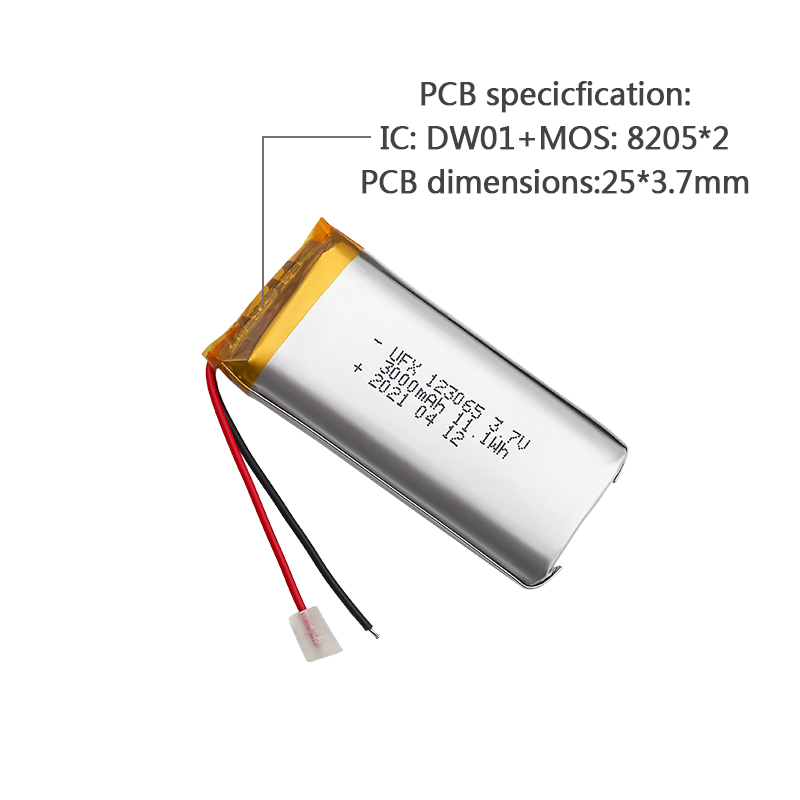

| 3、Cell protection | |||
| Overcharge Detection ： |
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection： |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection： |
2.5A to 4.0A (9 to 15msec. delay) | Short protection： |
Yes |
| 4、Discharge Rate Characteristics | 5、Cycle life Characteristics | ||
 |
 |
||
 |
 |
| Model | Nominal(V) | Capacity | Certificate | Other Certificate | Dimensions | Spec Sheet | |||
| UFX102040 | 3.7V | 750mAh | KC | UL1642 | 10*20*42mm | Download | |||
| UFX102050 | 3.7V | 1000mAh | KC | CB/PSE/UL1642/UN38.3/ROHS/CE | 10*20*52mm | Download | |||
| UFX102055 | 3.7v | 1100mAh | KC | UL1642 | Download | ||||
| UFX102540 | 3.7V | 1200mAh | KC | UL1642(TUV) /CE/CB/UL2054/UM38.3 | 10*25*42mm | Download | |||
| UFX103040 | 3.7V | 1200mAh | KC | UL1642/CE/PSE/UN38.3/ROHS | 10*30*40mm | Download | |||
| UFX103040-3C | 3.7V | 1200mAh | KC | UL1642/UL2054/WERCSmart/PSE/BIS | 10*30*42mm | Download | |||
| UFX103048 | 3.7V | 1400mAh | KC | ROHS/UN38.3/CE/UL1642 | 10*30*50mm | Download | |||
| UFX103450 | 3.7V | 1800mAh | KC | UN38.3/PSE/ROHS/UL1642/CB | 10*34*52mm | Download | |||
| UFX104050 | 3.7V | 2300mAh | KC | CB/UN38.3/ROHS/UL(tuv）1642 | 10*40*52mm | Download | |||
| UFX104060 | 3.7V | 2800mAh | KC | 10*40*62mm | Download | ||||
| UFX104065 | 3.7V | 3200mAh | KC | 10*40*67mm | Download | ||||
| UFX105050 | 3.7V | 3000mAh | KC | UL1642 | 10*50*52mm | Download | |||
| UFX105060 | 3.7V | 3500mAh | KC | 10*50*62mm | Download | ||||
| UFX105065 | 3.7V | 4000mAh | KC | 10*50*67mm | Download | ||||
| UFX105085 | 3.7V | 5000mAh | KC | UL1642/UN38.3 | 10*50*87mm | Download | |||
| UFX105573 | 3.7V | 5000mAh | KC | 10*55*75mm | Download | ||||
| UFX124040 | 3.7V | 2000mAh | KC | EN62133 | 12*40*42mm | Download | |||
| UFX124060 | 3.7V | 3600mAh | KC | 12*40*62mm | Download | ||||
| UFX252040 | 3.7V | 170mAh | KC | 2.5*20*42mm | Download | ||||
| UFX301525 | 3.7V | 80mAh | KC | 3*15*27mm | Download | ||||
| UFX303040 | 3.7V | 320mAh | KC | 3*30*42mm | Download | ||||
| UFX303055 | 3.7V | 500mAh | KC | UN38.3/UL1642 | 3*30*57mm | Download | |||
| UFX373050 | 3.7V | 550mAh | KC | UN38.3 | 3.7*30*52mm | Download | |||
| UFX401242 | 3.7V | 100mAh | KC | 4*12*44mm | Download | ||||
| UFX401120 | 3.7V | 55mAh | KC | CB/UL1642/UN38.3 | 4*11*22mm | Download | |||
| UFX401230 | 3.7V | 110mAh | KC | 4*12*32mm | Download | ||||
| UFX401235 | 3.7V | 120mAh | KC | UL1642 | 4*12*37mm | Download | |||
| UFX401430 | 3.7V | 120mAh | KC | 4*14*32mm | Download | ||||
| UFX401430 | 3.7V | 130mAh | KC | 4*14*32mm | Download | ||||
| UFX402065 | 3.7V | 550mAh | KC | 4*20*67mm | Download | ||||
| UFX402780 | 3.7V | 1000mAh | KC | UL(tuv）1642/ROHS/CB | 4*27*82mm | Download | |||
| UFX402895 | 3.7V | 1200mAh | KC | 4*28*97mm | Download | ||||
| UFX402934 | 3.7V | 350mAh | KC | 4*29*36mm | Download | ||||
| UFX403441 | 3.7V | 650mAh | KC | 4*34*43mm | Download | ||||
| UFX501447 | 3.7V | 280mAh | KC | UN38.3 | 5*14*49mm | Download | |||
| UFX501535 | 3.7V | 200mAh | KC | 5*15*37mm | |||||
| UFX502025 | 3.7V | 200mAh | KC | UN38.3 | 5*20*27mm | ||||
| UFX502030 | 3.7V | 300mAh | KC | CE/UL(tuv）1642 | 5*20*32mm | ||||
| UFX502535 | 3.7V | 300mAh | KC | UN38.3/UL1642 | 5*25*37mm | ||||
| UFX502065 | 3.7V | 600mAh | KC | UL1642 | 5*20*67mm | ||||
| UFX502248 | 3.7V | 500mAh | KC | UL1642 | 5*22*50mm | ||||
| UFX502530 | 3.7V | 350mAh | KC | 5*25*32mm | |||||
| UFX502535 | 3.7V | 400mAh | KC | 5*25*37mm | |||||
| UFX502545 | 3.7V | 600mAh | KC | 5*25*47mm | |||||
| UFX502728 | 3.7V | 360mAh | KC | 5*27*30mm | |||||
| UFX503035 | 3.7V | 500mAh | KC | 5*30*37mm | |||||
| UFX503040 | 3.7V | 600mAh | KC | 5*30*42mm | |||||
| UFX503048 | 3.7V | 750mAh | KC | CB/UN38.3/UL(tuv）1642/ROHS | 5*30*50mm | ||||
| UFX503759 | 3.7V | 1200mAh | KC | UL1642/UN38.3/CE/CB | 5*37*61mm | ||||
| UFX504040 | 3.7V | 800mAh | KC | 5*40*42mm | |||||
| UFX505050 | 3.7V | 1500mAh | KC | 5*50*52mm | |||||
| UFX 505573 | 3.7V | 2500 mAh | KC | UL(tuv)1642 | 5*55*75mm | ||||
| UFX506090 | 3.7V | 3000 mAh | KC | UL1642 | 5*60*92mm | ||||
| UFX523450 | 3.7V | 1000 mAh | KC | CB/UN38.3/ROHS/UL(tuv)1642/UL(tuv)2054 | 5.2*34*52mm | ||||
| UFX552045 | 3.7V | 450mAh | KC | 5.5*20*47mm | |||||
| UFX601535 | 3.7V | 250mAh | KC | UN38.3 | 6*15*37mm | ||||
| UFX601720 | 3.7V | 150mAh | KC | 6*17*22mm | |||||
| UFX602030 | 3.7V | 300mAh | KC | UL1642/UN38.3/加洲65/CE/EN62133/ICE62133 | 6*20*32mm | ||||
| UFX602035 | 3.7V | 400mAh | KC | UL1642/UN38.3 | 6*20*37mm | ||||
| UFX602040 | 3.7V | 400mAh | KC | 6*20*40mm | |||||
| UFX602040 | 3.7V | 450mAh | KC | 6*20*47mm | |||||
| UFX602047 | 3.7V | 540mAh | KC | 6*20*49mm | |||||
| UFX602530 | 3.7V | 450mAh | KC | CE | 6*25*32mm | ||||
| UFX602535 | 3.7V | 500mAh | KC | IEC62133/UL(tuv)1642 | 6*25*37mm | ||||
| UFX603030 | 3.7V | 500mAh | KC | UL1642/UN38.3 | 6*30*32mm | ||||
| UFX603040 | 3.7V | 680mAh | KC | UL1642 | 6*30*42mm | ||||
| UFX603048 | 3.7V | 900mAh | KC | UL1642/UN38.3/IEC62133/CE | 6*30*50mm | ||||
| UFX603450 | 3.7V | 1200mAh | KC | UL1642 | 6*34*52mm | ||||
| UFX604050 | 3.7V | 1500mAh | KC | UL1642 | 6*40*52mm | ||||
| UFX604060 | 3.7V | 1700mAh | KC | UL1642 | 6*40*62mm | ||||
| UFX604070 | 3.7V | 2000mAh | KC | 6*40*72mm | |||||
| UFX605060 | 3.7V | 2000mAh | KC | CB/UN38.3 | 6*50*62mm | ||||
| UFX605080 | 3.7V | 3000mAh | KC | UL(tuv）1642/UN38.3 | 6*50*82mm | ||||
| UFX605473 | 3.7V | 3000mAh | KC | 6*54*75mm | |||||
| UFX606090 | 3.7V | 4000mAh | KC | UL(tuv）1642/ROHS/UN38.3 | 6*60*92mm | ||||
| UFX634169 | 3.7V | 2000mAh | KC | 6.3*41*69mm | |||||
| UFX641447 | 3.7V | 400mAh | KC | 6.4*14*47mm | |||||
| UFX651725 | 3.7V | 230mAh | KC | 6.5*17*27mm | |||||
| UFX653040 | 3.7V | 800mAh | KC | 6.5*30*42mm | |||||
| UFX654065 | 3.7V | 2000mAh | KC | UL1642/PSE/UN38.3/CE/CB | 6.5*40*67mm | ||||
| UFX686770 | 3.7V | 4000mAh | KC | 6.8*67*72mm | |||||
| UFX701330 | 3.7V | 200mAh | KC | ROHS/CE/UN38.3/UL(tuv）1642 | 70*13*32mm | ||||
| UFX701488 | 3.7V | 850mAh | KC | 7*14*90mm | |||||
| UFX701535 | 3.7V | 350mAh | KC | UL(tuv）1642/CE/ROHS/UN38.3/IEC62133/PSE | 7*15*37mm | ||||
| UFX702025 | 3.7V | 300mAh | KC | CE/加洲65/UN38.3/EN62133/UL(tuv）1642 | 7*20*27mm | ||||
| UFX702060 | 3.7V | 850mAh | KC | CE | 7*20*62 mm | ||||
| UFX702248 | 3.7V | 700mAh | KC | IEC62133 | 7*22*50mm | ||||
| UFX702248 | 3.7V | 800mAh | KC | 7*22*50 mm | |||||
| UFX702257 | 3.7V | 1000mAh | KC | L(tuv）1642/UN38.3 | 7*22*59 mm | ||||
| UFX703048 | 3.7V | 1000mAh | KC | UL1642/CB/ROHS | 7*30*50mm | ||||
| UFX703440 | 3.7V | 1000mAh | KC | 7*34*50mm | |||||
| UFX706090 | 3.7V | 5000mAh | KC | UL1642 | 7*60*92 mm | ||||
| UFX721944 | 3.7V | 630mAh | KC | UL(tuv)1642 | 7.2*19*46 mm | ||||
| UFX751635 | 3.7V | 380mAh | KC | 7.5*16*37mm | |||||
| UFX702035 | 3.7V | 500mAh | KC | 7.5*20*37 mm | |||||
| UFX753450 | 3.7V | 1300mAh | KC | UN38.3 | 7.5*34*52 mm | ||||
| UFX 756077 | 3.7V | 4800mAh | KC | CB/UN38.3/UL1642 | 7.5*60*79 mm | ||||
| UFX782150 | 3.7V | 800mAh | KC | 7.8*21*52mm | |||||
| UFX801350 | 3.7V | 500mAh | KC | UL(tuv)1642 | 8*13*52 mm | ||||
| UFX 801735 | 3.7V | 500mAh | KC | UN38.3 | 8*17*37mm | ||||
| UFX802030 | 3.7V | 400mAh | KC | UL1642/PSE | 8*20*32mm | ||||
| UFX802035 | 3.7V | 500mAh | KC | 8*20*37 mm | |||||
| UFX802040 | 3.7V | 600mAh | KC | UL(tuv）1642/CE/UN38.3 | 8*20*42 mm | ||||
| UFX802050 | 3.7V | 800mAh | KC | UL(tuv)1642/CB/UN3.83/CE | 8*20*52mm | ||||
| UFX802248 | 3.7V | 1000mAh | KC | 8*22*50mm | |||||
| UFX802528 | 3.7V | 480mAh | KC | UN38.3/CE/IEC62133 | 8*25*30mm | ||||
| UFX802528 | 3.7V | 500mAh | KC | UL1642/PSE/CB | 8*25*30mm | ||||
| UFX802530 | 3.7V | 600mAh | KC | UL1642/UL2054/CB | 8*25*32mm | ||||
| UFX802535 | 3.7V | 700mAh | KC | 8*25*37mm | |||||
| UFX803035 | 3.7V | 800mAh | KC | UL(tuv)1642 | 8*30*37mm | ||||
| UFX803040 | 3.7V | 900mAh | KC | 8*30*42mm | |||||
| UFX803048 | 3.7V | 1200mAh | KC | UL(tuv)1642/CB/CE/ROHS | 8*30*50mm | ||||
| UFX803448 | 3.7V | 1300 mAh | KC | 8*34*50mm | |||||
| UFX803450 | 3.7V | 1500mAh | KC | UL1642/CB/ROHS/CE/UN38.3 | 8*34*52mm | Download | |||
| UFX804050 | 3.7V | 1800mAh | KC | 8*40*50mm | |||||
| UFX804068 | 3.7V | 2500 mAh | KC | UL1642 | 8*40*70mm | ||||
| UFX805080 | 3.7V | 4000mAh | KC | 8*50*82mm | |||||
| UFX832248 | 3.7V | 920mAh | KC | UL(tuv)1642/UN38.3/EN62133 | 8.3*22*50mm | ||||
| UFX851768 | 3.7V | 850mAh | KC | UL(tuv)1642 | 8.5*17*69mm | ||||
| UFX901428 | 3.7V | 260mAh | KC | CE/CB | 9*14*30mm | ||||
| UFX901744 | 3.7V | 680mAh | KC | 9*17*46mm | |||||
| UFX902030 | 3.7V | 500mAh | KC | UL(tuv)1642/UN38.3/CE | 9*20*32mm | ||||
| UFX902035 | 3.7V | 600mAh | KC | 9*20*37mm | |||||
| UFX902248 | 3.7V | 1050mAh | KC | UN38.3/CE/IEC62133 | 9*22*50mm | ||||
| UFX902535 | 3.7V | 800mAh | KC | UL1642 | 9*25*37mm | ||||
| UFX903450 | 3.7V | 1600mAh | KC | 9*34*52mm | |||||
| UFX951768 | 3.7V | 1200mAh | KC | UL(tuv)1642/UN38.3 | 9.5*17*69mm | ||||
| UFX955565 | 3.7V | 5000mAh | KC | UL(tuv)1642/UN38.3 | 9.5*55*67mm | ||||
| UFX3060100 | 3.7V | 2000mAh | KC | UN38.3/EN62133/GB31241/UL(tuv)1642 | 3*60*100mm | ||||
| UFX4027110 | 3.7V | 1000mAh | KC | CB | 4*27*102mm | ||||
| UFX6080130 | 3.7V | 8000mAh | KC | CB/UL1642/PSE | 6*80*132mm | ||||
| UFX9559104 | 3.8V | 8000mAh | KC | UN38.3/ROHS/UL1642/GB31241报告/EN62133/CB/BIS | 9.5*59*106mm | ||||
| UFX162027-2P | 3.7V | 700mAh | KC | ROHS | 16*20*29mm | ||||
| UFX502025-4P | 3.7V | 800mAh | KC | 21*20*27mm | |||||
| UFX604040-2S | 7.4V | 1000mAh | KC | 13*40*43mm | |||||
| UFX102050-2S | 7.4V | 1000mAh | KC | 20*20*53mm | |||||
| UFX104050-2S | 7.4V | 2500mAh | KC | 20*40*52mm | |||||
| UFX124060-2S | 7.4V | 1700mAh | KC | 12*40*63mm | |||||
| UFX503450-2S | 7.4V | 1000mAh | KC | CB/ROHS | 10*34*52mm | ||||
| UFX603030-2S | 7.4V | 500mAh | KC | CB | 12*30*32mm | ||||
| UFX603450-2S | 7.4V | 1200mAh | KC | CB/UN38.3 | 12*34*52mm | ||||
| UFX702257-2S | 7.4V | 1000mAh | KC | CB/UN38.3 | 14*22*59mm | ||||
| UFX804068-2S | 7.4V | 2500mAh | KC | CB | 16*40*70mm | ||||
| UFX6067101-3S | 11.1V | 5800 mAh | KC | CB/UN38.3/ROHS | 18*67*103mm | ||||
| UFX18650-2S2P | 7.4V | 5200mAh | KC | ||||||
| UFX18650-3S | 11.1V | 2600mAh | KC | CB/UN38.3 | |||||
