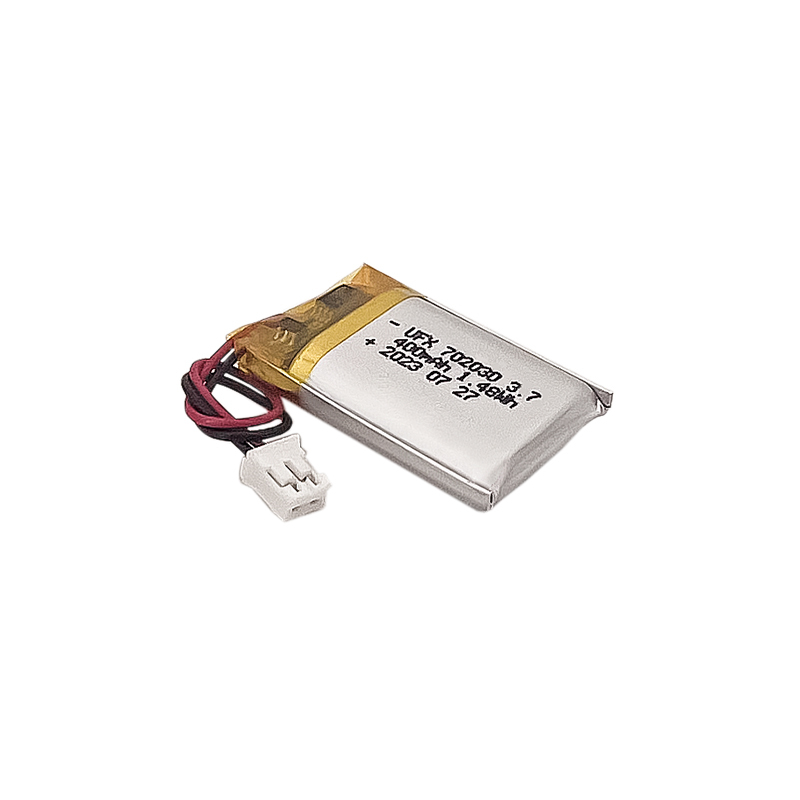

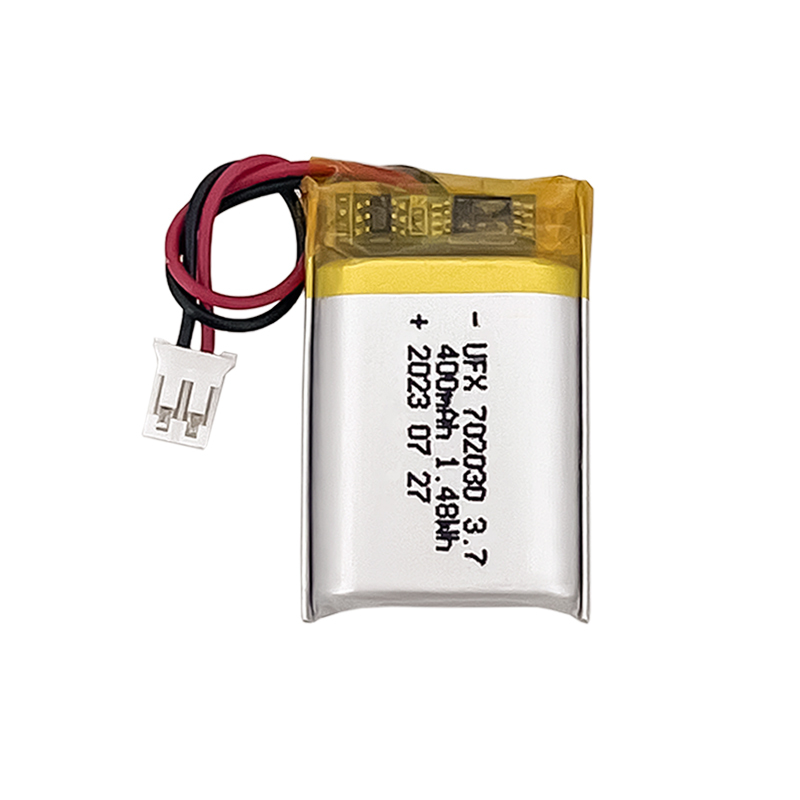

Hello, and welcome to Ufine New Energy. We are a leading manufacturer of lithium-ion batteries, specializing in the production of various products such as UFX 702030, a 400mAh 3.7V cylindrical battery pack. Our batteries are widely used in battery-powered pet toys and other consumer electronics. At Ufine New Energy, we take pride in our state-of-the-art manufacturing facility and our commitment to producing high-quality products. Our team of experts ensures that every step of the production process is meticulously monitored and controlled to meet international standards. We have a well-established quality control system in place to guarantee the reliability and performance of our lithium-ion cells. We also prioritize environmental sustainability in our operations. Our eco batteries are designed to minimize environmental impact, using environmentally friendly materials and production techniques. We are dedicated to reducing waste, conserving energy, and practicing responsible recycling practices. As a renowned lithium pouch cell supplier, we have established long-term partnerships with clients from all over the world. Our dedication to innovation, reliability, and customer satisfaction has made us a trusted choice for companies seeking premium battery solutions. For more information about our products and services, please visit our website at Ufinebattery.com. Thank you for choosing Ufine New Energy as your lithium-ion cell manufacturer.
| 1、Mechanical Characteristics | |||
| Cell: | UFX702030 | PCM: | Yes |
| NTC: | No | Weight: | appr.9.2g |
| Configuration | 1S1P | ||

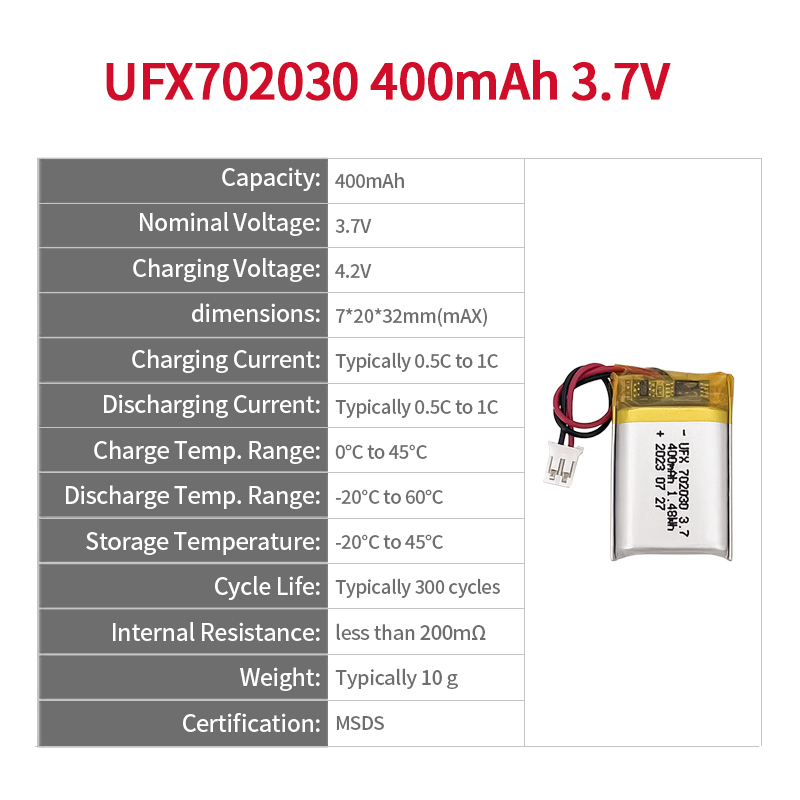

| 2、Electrical Specification |
|||
| Capacity: | 400mAh | Nominal Voltage: | 3.7V |
| Energy: | 1.48Wh | Internal Impedance: | less than 200mΩ |
| Charge Voltage: |
4.2V | Discharge Cut Off: |
2.75V |
| Max. Charge Current: |
400mA | Max. Discharge Current: |
400mA |
| Standard Charge Current: | 200mA | Standard Discharge Current: |
200mA |
| Charge Temp. Range: | 10°C to 45°C | Discharge Temp. Range: | -20°C to 60°C |
| Storage Temp. Range |
1 year at -20℃ to +30℃ | Cycle life: | 100 cycles ≥92% |
| 3 moths at -20℃ to +45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||

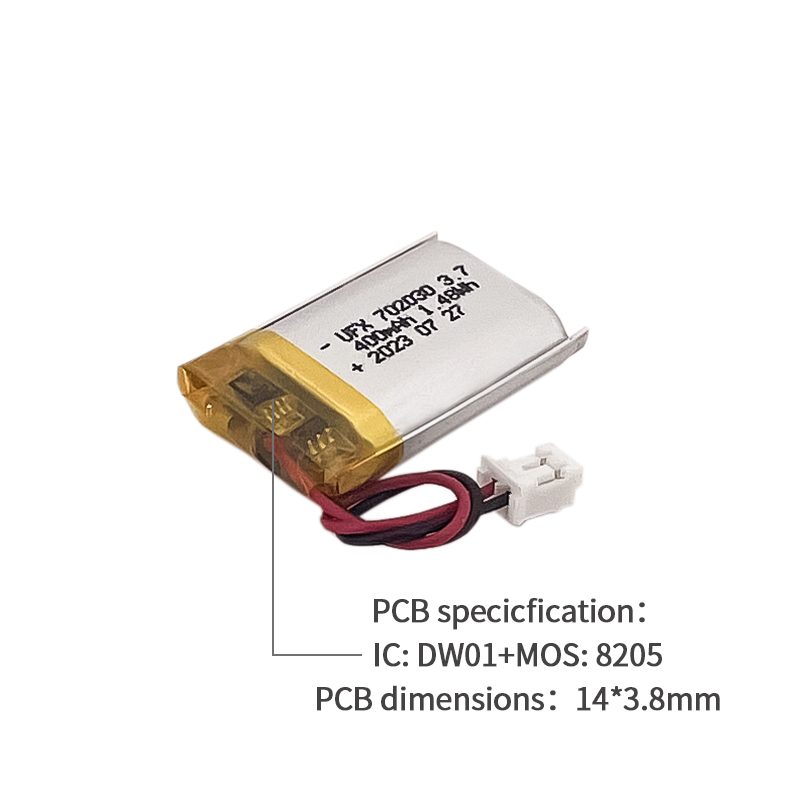

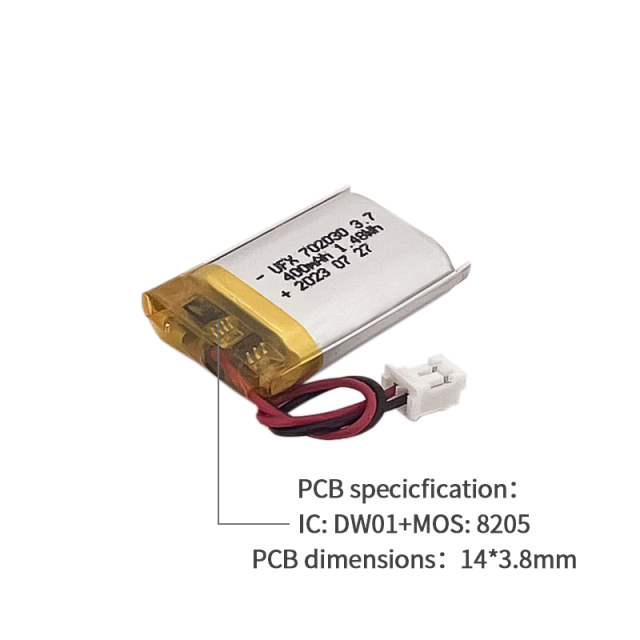

| 3、Cell protection | |||
| Overcharge Detection ： |
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection： |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection： |
2.5A to 4.0A (9 to 15msec. delay) | Short protection： |
Yes |
| 4、Discharge Rate Characteristics | 5、Cycle life Characteristics | ||
 |
 |
||
 |
 |
| Model | Nominal(V) | Capacity | Certificate | Other Certificate | Dimensions | Spec Sheet | |||
| UFX102040 | 3.7V | 750mAh | KC | UL1642 | 10*20*42mm | Download | |||
| UFX102050 | 3.7V | 1000mAh | KC | CB/PSE/UL1642/UN38.3/ROHS/CE | 10*20*52mm | Download | |||
| UFX102055 | 3.7v | 1100mAh | KC | UL1642 | Download | ||||
| UFX102540 | 3.7V | 1200mAh | KC | UL1642(TUV) /CE/CB/UL2054/UM38.3 | 10*25*42mm | Download | |||
| UFX103040 | 3.7V | 1200mAh | KC | UL1642/CE/PSE/UN38.3/ROHS | 10*30*40mm | Download | |||
| UFX103040-3C | 3.7V | 1200mAh | KC | UL1642/UL2054/WERCSmart/PSE/BIS | 10*30*42mm | Download | |||
| UFX103048 | 3.7V | 1400mAh | KC | ROHS/UN38.3/CE/UL1642 | 10*30*50mm | Download | |||
| UFX103450 | 3.7V | 1800mAh | KC | UN38.3/PSE/ROHS/UL1642/CB | 10*34*52mm | Download | |||
| UFX104050 | 3.7V | 2300mAh | KC | CB/UN38.3/ROHS/UL(tuv）1642 | 10*40*52mm | Download | |||
| UFX104060 | 3.7V | 2800mAh | KC | 10*40*62mm | Download | ||||
| UFX104065 | 3.7V | 3200mAh | KC | 10*40*67mm | Download | ||||
| UFX105050 | 3.7V | 3000mAh | KC | UL1642 | 10*50*52mm | Download | |||
| UFX105060 | 3.7V | 3500mAh | KC | 10*50*62mm | Download | ||||
| UFX105065 | 3.7V | 4000mAh | KC | 10*50*67mm | Download | ||||
| UFX105085 | 3.7V | 5000mAh | KC | UL1642/UN38.3 | 10*50*87mm | Download | |||
| UFX105573 | 3.7V | 5000mAh | KC | 10*55*75mm | Download | ||||
| UFX124040 | 3.7V | 2000mAh | KC | EN62133 | 12*40*42mm | Download | |||
| UFX124060 | 3.7V | 3600mAh | KC | 12*40*62mm | Download | ||||
| UFX252040 | 3.7V | 170mAh | KC | 2.5*20*42mm | Download | ||||
| UFX301525 | 3.7V | 80mAh | KC | 3*15*27mm | Download | ||||
| UFX303040 | 3.7V | 320mAh | KC | 3*30*42mm | Download | ||||
| UFX303055 | 3.7V | 500mAh | KC | UN38.3/UL1642 | 3*30*57mm | Download | |||
| UFX373050 | 3.7V | 550mAh | KC | UN38.3 | 3.7*30*52mm | Download | |||
| UFX401242 | 3.7V | 100mAh | KC | 4*12*44mm | Download | ||||
| UFX401120 | 3.7V | 55mAh | KC | CB/UL1642/UN38.3 | 4*11*22mm | Download | |||
| UFX401230 | 3.7V | 110mAh | KC | 4*12*32mm | Download | ||||
| UFX401235 | 3.7V | 120mAh | KC | UL1642 | 4*12*37mm | Download | |||
| UFX401430 | 3.7V | 120mAh | KC | 4*14*32mm | Download | ||||
| UFX401430 | 3.7V | 130mAh | KC | 4*14*32mm | Download | ||||
| UFX402065 | 3.7V | 550mAh | KC | 4*20*67mm | Download | ||||
| UFX402780 | 3.7V | 1000mAh | KC | UL(tuv）1642/ROHS/CB | 4*27*82mm | Download | |||
| UFX402895 | 3.7V | 1200mAh | KC | 4*28*97mm | Download | ||||
| UFX402934 | 3.7V | 350mAh | KC | 4*29*36mm | Download | ||||
| UFX403441 | 3.7V | 650mAh | KC | 4*34*43mm | Download | ||||
| UFX501447 | 3.7V | 280mAh | KC | UN38.3 | 5*14*49mm | Download | |||
| UFX501535 | 3.7V | 200mAh | KC | 5*15*37mm | |||||
| UFX502025 | 3.7V | 200mAh | KC | UN38.3 | 5*20*27mm | ||||
| UFX502030 | 3.7V | 300mAh | KC | CE/UL(tuv）1642 | 5*20*32mm | ||||
| UFX502535 | 3.7V | 300mAh | KC | UN38.3/UL1642 | 5*25*37mm | ||||
| UFX502065 | 3.7V | 600mAh | KC | UL1642 | 5*20*67mm | ||||
| UFX502248 | 3.7V | 500mAh | KC | UL1642 | 5*22*50mm | ||||
| UFX502530 | 3.7V | 350mAh | KC | 5*25*32mm | |||||
| UFX502535 | 3.7V | 400mAh | KC | 5*25*37mm | |||||
| UFX502545 | 3.7V | 600mAh | KC | 5*25*47mm | |||||
| UFX502728 | 3.7V | 360mAh | KC | 5*27*30mm | |||||
| UFX503035 | 3.7V | 500mAh | KC | 5*30*37mm | |||||
| UFX503040 | 3.7V | 600mAh | KC | 5*30*42mm | |||||
| UFX503048 | 3.7V | 750mAh | KC | CB/UN38.3/UL(tuv）1642/ROHS | 5*30*50mm | ||||
| UFX503759 | 3.7V | 1200mAh | KC | UL1642/UN38.3/CE/CB | 5*37*61mm | ||||
| UFX504040 | 3.7V | 800mAh | KC | 5*40*42mm | |||||
| UFX505050 | 3.7V | 1500mAh | KC | 5*50*52mm | |||||
| UFX 505573 | 3.7V | 2500 mAh | KC | UL(tuv)1642 | 5*55*75mm | ||||
| UFX506090 | 3.7V | 3000 mAh | KC | UL1642 | 5*60*92mm | ||||
| UFX523450 | 3.7V | 1000 mAh | KC | CB/UN38.3/ROHS/UL(tuv)1642/UL(tuv)2054 | 5.2*34*52mm | ||||
| UFX552045 | 3.7V | 450mAh | KC | 5.5*20*47mm | |||||
| UFX601535 | 3.7V | 250mAh | KC | UN38.3 | 6*15*37mm | ||||
| UFX601720 | 3.7V | 150mAh | KC | 6*17*22mm | |||||
| UFX602030 | 3.7V | 300mAh | KC | UL1642/UN38.3/加洲65/CE/EN62133/ICE62133 | 6*20*32mm | ||||
| UFX602035 | 3.7V | 400mAh | KC | UL1642/UN38.3 | 6*20*37mm | ||||
| UFX602040 | 3.7V | 400mAh | KC | 6*20*40mm | |||||
| UFX602040 | 3.7V | 450mAh | KC | 6*20*47mm | |||||
| UFX602047 | 3.7V | 540mAh | KC | 6*20*49mm | |||||
| UFX602530 | 3.7V | 450mAh | KC | CE | 6*25*32mm | ||||
| UFX602535 | 3.7V | 500mAh | KC | IEC62133/UL(tuv)1642 | 6*25*37mm | ||||
| UFX603030 | 3.7V | 500mAh | KC | UL1642/UN38.3 | 6*30*32mm | ||||
| UFX603040 | 3.7V | 680mAh | KC | UL1642 | 6*30*42mm | ||||
| UFX603048 | 3.7V | 900mAh | KC | UL1642/UN38.3/IEC62133/CE | 6*30*50mm | ||||
| UFX603450 | 3.7V | 1200mAh | KC | UL1642 | 6*34*52mm | ||||
| UFX604050 | 3.7V | 1500mAh | KC | UL1642 | 6*40*52mm | ||||
| UFX604060 | 3.7V | 1700mAh | KC | UL1642 | 6*40*62mm | ||||
| UFX604070 | 3.7V | 2000mAh | KC | 6*40*72mm | |||||
| UFX605060 | 3.7V | 2000mAh | KC | CB/UN38.3 | 6*50*62mm | ||||
| UFX605080 | 3.7V | 3000mAh | KC | UL(tuv）1642/UN38.3 | 6*50*82mm | ||||
| UFX605473 | 3.7V | 3000mAh | KC | 6*54*75mm | |||||
| UFX606090 | 3.7V | 4000mAh | KC | UL(tuv）1642/ROHS/UN38.3 | 6*60*92mm | ||||
| UFX634169 | 3.7V | 2000mAh | KC | 6.3*41*69mm | |||||
| UFX641447 | 3.7V | 400mAh | KC | 6.4*14*47mm | |||||
| UFX651725 | 3.7V | 230mAh | KC | 6.5*17*27mm | |||||
| UFX653040 | 3.7V | 800mAh | KC | 6.5*30*42mm | |||||
| UFX654065 | 3.7V | 2000mAh | KC | UL1642/PSE/UN38.3/CE/CB | 6.5*40*67mm | ||||
| UFX686770 | 3.7V | 4000mAh | KC | 6.8*67*72mm | |||||
| UFX701330 | 3.7V | 200mAh | KC | ROHS/CE/UN38.3/UL(tuv）1642 | 70*13*32mm | ||||
| UFX701488 | 3.7V | 850mAh | KC | 7*14*90mm | |||||
| UFX701535 | 3.7V | 350mAh | KC | UL(tuv）1642/CE/ROHS/UN38.3/IEC62133/PSE | 7*15*37mm | ||||
| UFX702025 | 3.7V | 300mAh | KC | CE/加洲65/UN38.3/EN62133/UL(tuv）1642 | 7*20*27mm | ||||
| UFX702060 | 3.7V | 850mAh | KC | CE | 7*20*62 mm | ||||
| UFX702248 | 3.7V | 700mAh | KC | IEC62133 | 7*22*50mm | ||||
| UFX702248 | 3.7V | 800mAh | KC | 7*22*50 mm | |||||
| UFX702257 | 3.7V | 1000mAh | KC | L(tuv）1642/UN38.3 | 7*22*59 mm | ||||
| UFX703048 | 3.7V | 1000mAh | KC | UL1642/CB/ROHS | 7*30*50mm | ||||
| UFX703440 | 3.7V | 1000mAh | KC | 7*34*50mm | |||||
| UFX706090 | 3.7V | 5000mAh | KC | UL1642 | 7*60*92 mm | ||||
| UFX721944 | 3.7V | 630mAh | KC | UL(tuv)1642 | 7.2*19*46 mm | ||||
| UFX751635 | 3.7V | 380mAh | KC | 7.5*16*37mm | |||||
| UFX702035 | 3.7V | 500mAh | KC | 7.5*20*37 mm | |||||
| UFX753450 | 3.7V | 1300mAh | KC | UN38.3 | 7.5*34*52 mm | ||||
| UFX 756077 | 3.7V | 4800mAh | KC | CB/UN38.3/UL1642 | 7.5*60*79 mm | ||||
| UFX782150 | 3.7V | 800mAh | KC | 7.8*21*52mm | |||||
| UFX801350 | 3.7V | 500mAh | KC | UL(tuv)1642 | 8*13*52 mm | ||||
| UFX 801735 | 3.7V | 500mAh | KC | UN38.3 | 8*17*37mm | ||||
| UFX802030 | 3.7V | 400mAh | KC | UL1642/PSE | 8*20*32mm | ||||
| UFX802035 | 3.7V | 500mAh | KC | 8*20*37 mm | |||||
| UFX802040 | 3.7V | 600mAh | KC | UL(tuv）1642/CE/UN38.3 | 8*20*42 mm | ||||
| UFX802050 | 3.7V | 800mAh | KC | UL(tuv)1642/CB/UN3.83/CE | 8*20*52mm | ||||
| UFX802248 | 3.7V | 1000mAh | KC | 8*22*50mm | |||||
| UFX802528 | 3.7V | 480mAh | KC | UN38.3/CE/IEC62133 | 8*25*30mm | ||||
| UFX802528 | 3.7V | 500mAh | KC | UL1642/PSE/CB | 8*25*30mm | ||||
| UFX802530 | 3.7V | 600mAh | KC | UL1642/UL2054/CB | 8*25*32mm | ||||
| UFX802535 | 3.7V | 700mAh | KC | 8*25*37mm | |||||
| UFX803035 | 3.7V | 800mAh | KC | UL(tuv)1642 | 8*30*37mm | ||||
| UFX803040 | 3.7V | 900mAh | KC | 8*30*42mm | |||||
| UFX803048 | 3.7V | 1200mAh | KC | UL(tuv)1642/CB/CE/ROHS | 8*30*50mm | ||||
| UFX803448 | 3.7V | 1300 mAh | KC | 8*34*50mm | |||||
| UFX803450 | 3.7V | 1500mAh | KC | UL1642/CB/ROHS/CE/UN38.3 | 8*34*52mm | Download | |||
| UFX804050 | 3.7V | 1800mAh | KC | 8*40*50mm | |||||
| UFX804068 | 3.7V | 2500 mAh | KC | UL1642 | 8*40*70mm | ||||
| UFX805080 | 3.7V | 4000mAh | KC | 8*50*82mm | |||||
| UFX832248 | 3.7V | 920mAh | KC | UL(tuv)1642/UN38.3/EN62133 | 8.3*22*50mm | ||||
| UFX851768 | 3.7V | 850mAh | KC | UL(tuv)1642 | 8.5*17*69mm | ||||
| UFX901428 | 3.7V | 260mAh | KC | CE/CB | 9*14*30mm | ||||
| UFX901744 | 3.7V | 680mAh | KC | 9*17*46mm | |||||
| UFX902030 | 3.7V | 500mAh | KC | UL(tuv)1642/UN38.3/CE | 9*20*32mm | ||||
| UFX902035 | 3.7V | 600mAh | KC | 9*20*37mm | |||||
| UFX902248 | 3.7V | 1050mAh | KC | UN38.3/CE/IEC62133 | 9*22*50mm | ||||
| UFX902535 | 3.7V | 800mAh | KC | UL1642 | 9*25*37mm | ||||
| UFX903450 | 3.7V | 1600mAh | KC | 9*34*52mm | |||||
| UFX951768 | 3.7V | 1200mAh | KC | UL(tuv)1642/UN38.3 | 9.5*17*69mm | ||||
| UFX955565 | 3.7V | 5000mAh | KC | UL(tuv)1642/UN38.3 | 9.5*55*67mm | ||||
| UFX3060100 | 3.7V | 2000mAh | KC | UN38.3/EN62133/GB31241/UL(tuv)1642 | 3*60*100mm | ||||
| UFX4027110 | 3.7V | 1000mAh | KC | CB | 4*27*102mm | ||||
| UFX6080130 | 3.7V | 8000mAh | KC | CB/UL1642/PSE | 6*80*132mm | ||||
| UFX9559104 | 3.8V | 8000mAh | KC | UN38.3/ROHS/UL1642/GB31241报告/EN62133/CB/BIS | 9.5*59*106mm | ||||
| UFX162027-2P | 3.7V | 700mAh | KC | ROHS | 16*20*29mm | ||||
| UFX502025-4P | 3.7V | 800mAh | KC | 21*20*27mm | |||||
| UFX604040-2S | 7.4V | 1000mAh | KC | 13*40*43mm | |||||
| UFX102050-2S | 7.4V | 1000mAh | KC | 20*20*53mm | |||||
| UFX104050-2S | 7.4V | 2500mAh | KC | 20*40*52mm | |||||
| UFX124060-2S | 7.4V | 1700mAh | KC | 12*40*63mm | |||||
| UFX503450-2S | 7.4V | 1000mAh | KC | CB/ROHS | 10*34*52mm | ||||
| UFX603030-2S | 7.4V | 500mAh | KC | CB | 12*30*32mm | ||||
| UFX603450-2S | 7.4V | 1200mAh | KC | CB/UN38.3 | 12*34*52mm | ||||
| UFX702257-2S | 7.4V | 1000mAh | KC | CB/UN38.3 | 14*22*59mm | ||||
| UFX804068-2S | 7.4V | 2500mAh | KC | CB | 16*40*70mm | ||||
| UFX6067101-3S | 11.1V | 5800 mAh | KC | CB/UN38.3/ROHS | 18*67*103mm | ||||
| UFX18650-2S2P | 7.4V | 5200mAh | KC | ||||||
| UFX18650-3S | 11.1V | 2600mAh | KC | CB/UN38.3 | |||||
