BRAND:UFINE/UFX BATTERY
Ufine New Energy is a leading lithium polymer battery manufacturer specializing in the production of high-quality batteries. With our expertise in battery technology, we are committed to providing reliable and efficient power solutions. Our UFX 301645 180mAh 3.7V battery is specifically designed for small applications, offering a compact and rechargeable power source. As a renowned lithium polymer battery manufacturer, we have established ourselves as a leading manufacturer in China. Our state-of-the-art manufacturing facility is equipped with advanced technologies and production processes, allowing us to produce batteries of the highest quality. We prioritize the use of high-quality materials and conduct rigorous testing procedures to ensure optimal performance and durability. At Ufine New Energy, we understand the importance of small rechargeable LiPo batteries for various applications. Our UFX 301645 180mAh 3.7V battery is designed to meet the demanding power requirements of small devices. With its compact size and rechargeable capabilities, it provides a reliable and efficient power source. We take pride in our commitment to customer satisfaction. Our team at Ufine New Energy consists of experienced professionals dedicated to meeting customer requirements and providing exceptional service. We strive to deliver prompt and efficient customer support, ensuring a seamless experience from inquiry to delivery. If you are looking for a reliable lithium polymer battery manufacturer, Ufine New Energy is your ideal choice. Contact us today to discuss your battery needs and let us provide you with high-quality batteries for your small applications.
| 1、Mechanical Characteristics | |||

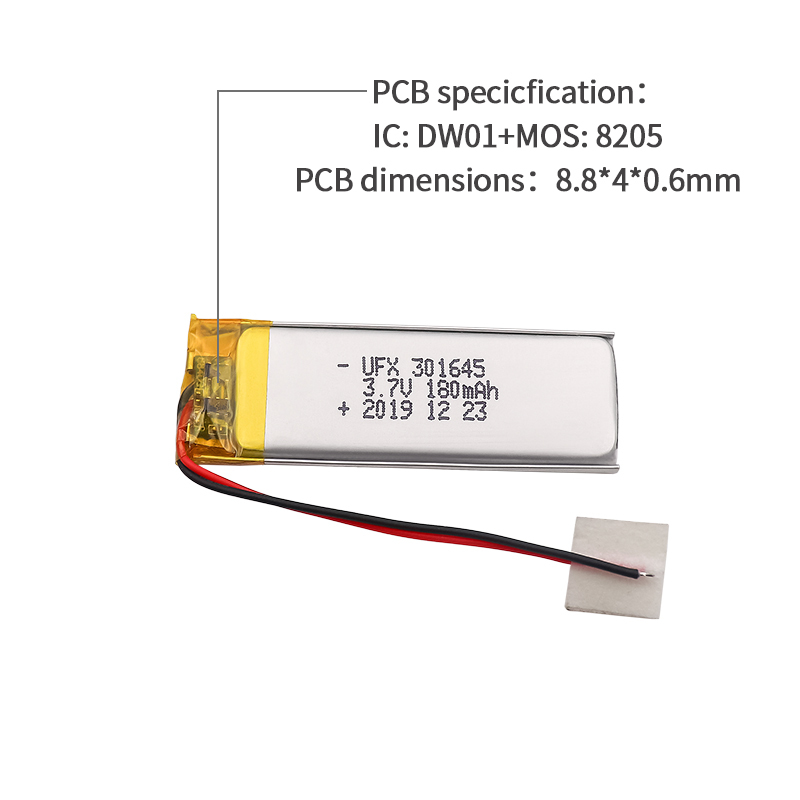

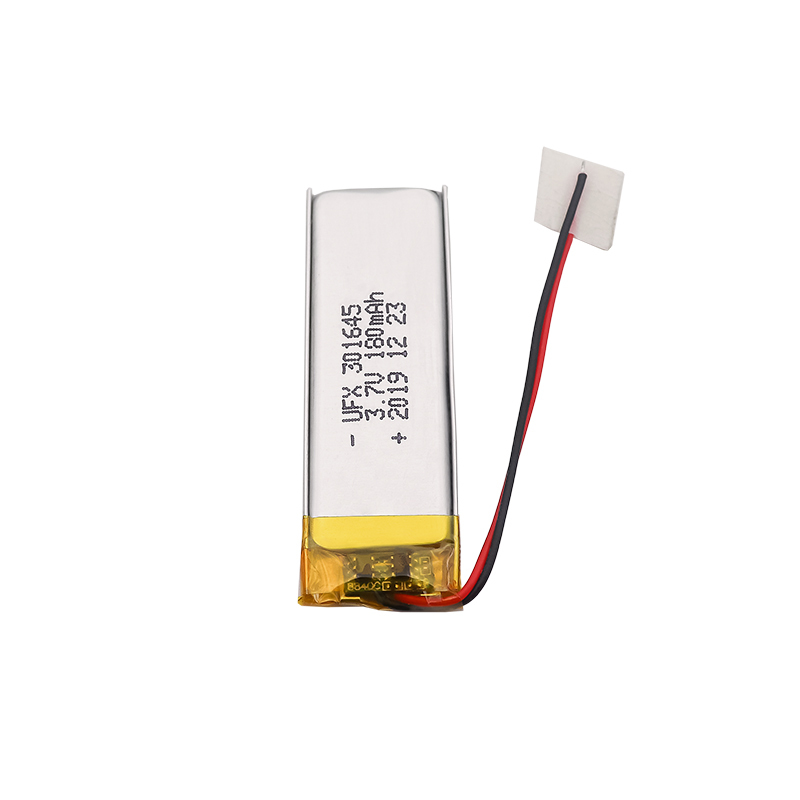

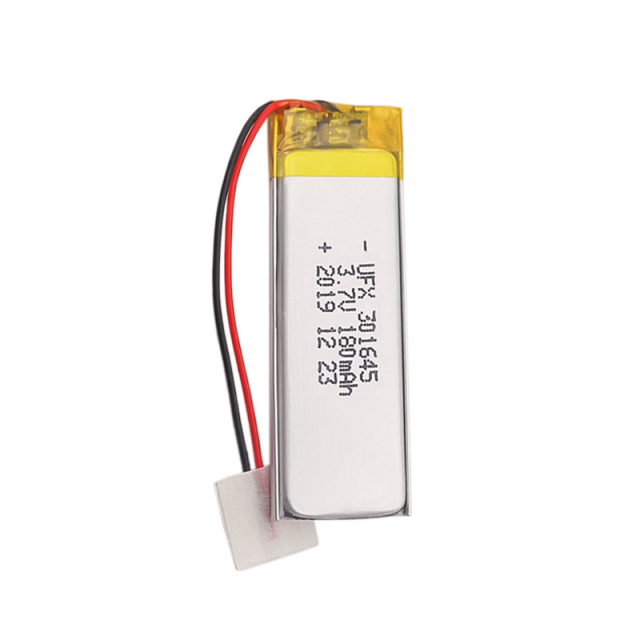

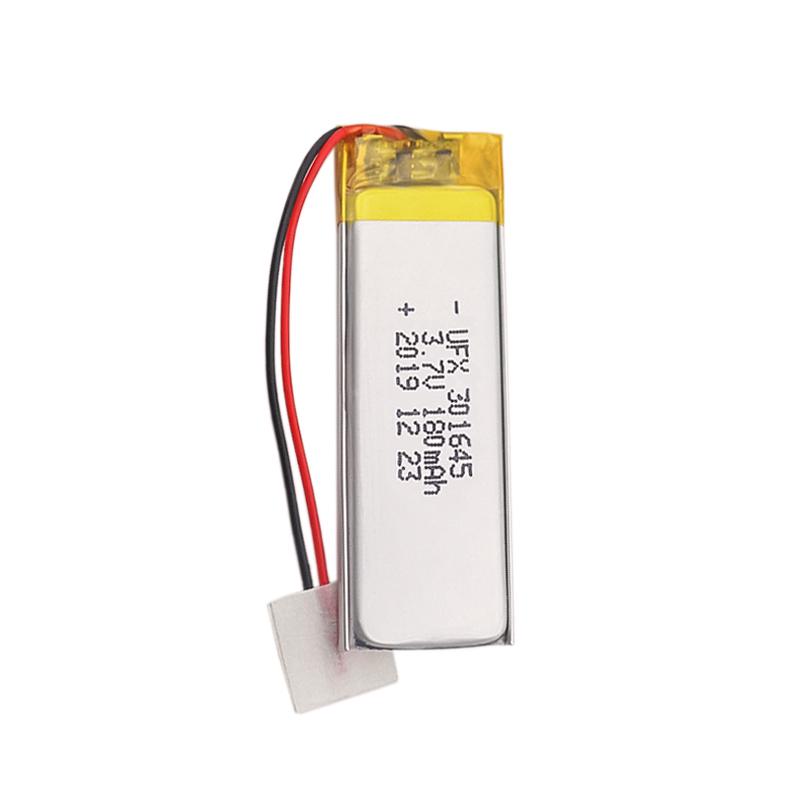

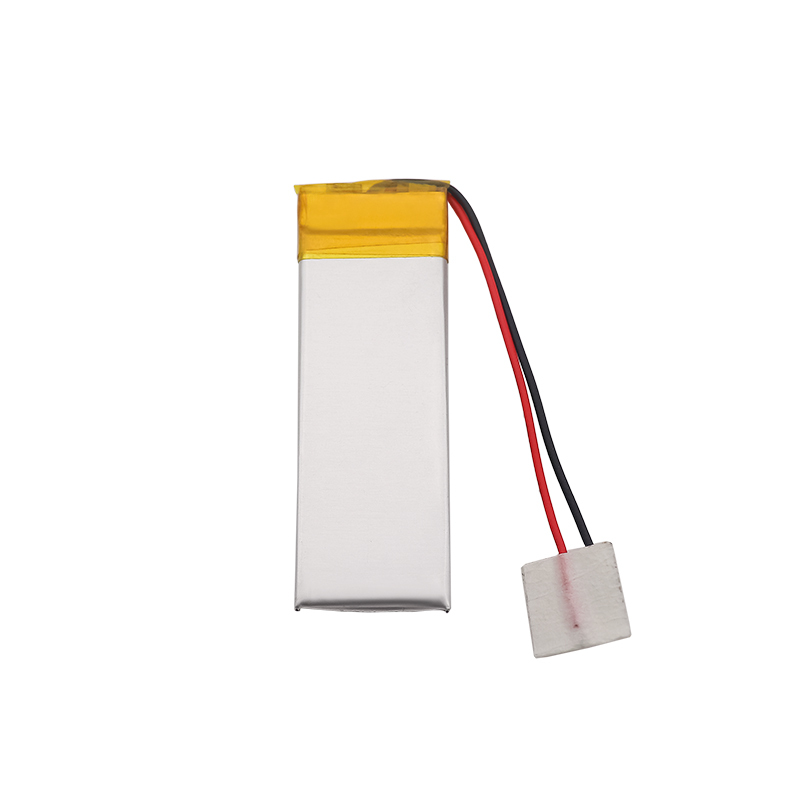

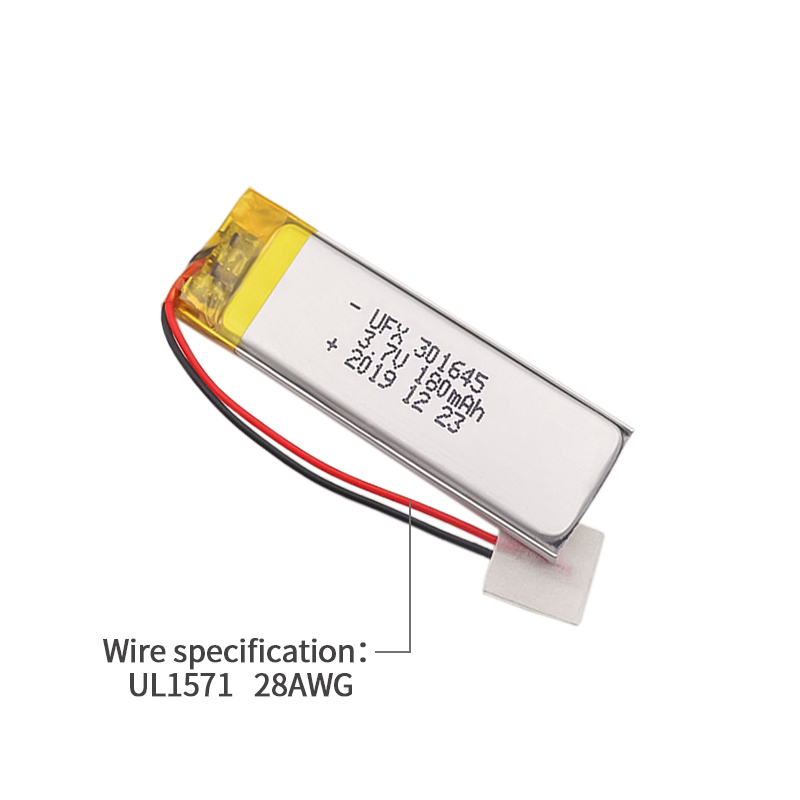

| Cell: | UFX301645 | PCM: | Yes |
| NTC: | No | Weight: | appr.4.68g |
| Configuration | 1S1P | ||

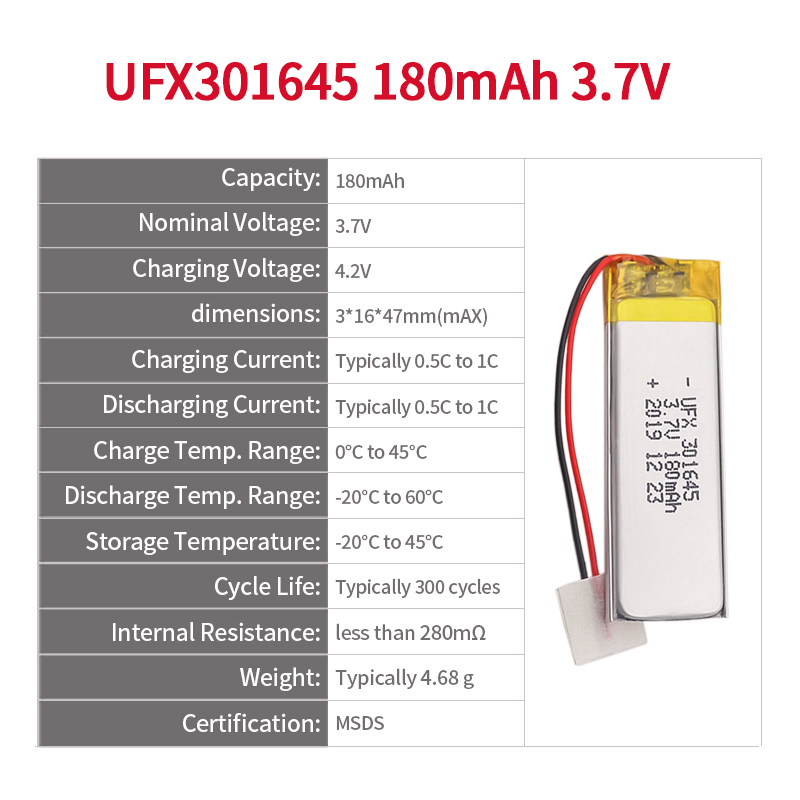

| 2、Electrical Specification |
|||
| Capacity: | 180mAh | Nominal Voltage: | 3.7V |
| Energy: | 0.666Wh | Internal Impedance: | less than 280mΩ |
| Charge Voltage: |
4.2V | Discharge Cut Off: |
2.75V |
| Max. Charge Current: |
180mA | Max. Discharge Current: |
180mA |
| Standard Charge Current: | 90mA | Standard Discharge Current: |
90mA |
| Charge Temp. Range: | 10°C to 45°C | Discharge Temp. Range: | -20°C to 60°C |
| Storage Temp. Range |
1 year at -20℃ to +30℃ | Cycle life: | 100 cycles ≥92% |
| 3 moths at -20℃ to +45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||
| 3、Cell protection | |||
| Overcharge Detection ： |
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection： |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection： |
2.5A to 4.0A (9 to 15msec. delay) | Short protection： |
Yes |
| 4、Discharge Rate Characteristics | 5、Cycle life Characteristics | ||
 |
 |
||
 |
 |
| Model | Nominal(V) | Capacity | Certificate | Other Certificate | Dimensions | Spec Sheet | |||
| UFX102040 | 3.7V | 750mAh | KC | UL1642 | 10*20*42mm | Download | |||
| UFX102050 | 3.7V | 1000mAh | KC | CB/PSE/UL1642/UN38.3/ROHS/CE | 10*20*52mm | Download | |||
| UFX102055 | 3.7v | 1100mAh | KC | UL1642 | Download | ||||
| UFX102540 | 3.7V | 1200mAh | KC | UL1642(TUV) /CE/CB/UL2054/UM38.3 | 10*25*42mm | Download | |||
| UFX103040 | 3.7V | 1200mAh | KC | UL1642/CE/PSE/UN38.3/ROHS | 10*30*40mm | Download | |||
| UFX103040-3C | 3.7V | 1200mAh | KC | UL1642/UL2054/WERCSmart/PSE/BIS | 10*30*42mm | Download | |||
| UFX103048 | 3.7V | 1400mAh | KC | ROHS/UN38.3/CE/UL1642 | 10*30*50mm | Download | |||
| UFX103450 | 3.7V | 1800mAh | KC | UN38.3/PSE/ROHS/UL1642/CB | 10*34*52mm | Download | |||
| UFX104050 | 3.7V | 2300mAh | KC | CB/UN38.3/ROHS/UL(tuv）1642 | 10*40*52mm | Download | |||
| UFX104060 | 3.7V | 2800mAh | KC | 10*40*62mm | Download | ||||
| UFX104065 | 3.7V | 3200mAh | KC | 10*40*67mm | Download | ||||
| UFX105050 | 3.7V | 3000mAh | KC | UL1642 | 10*50*52mm | Download | |||
| UFX105060 | 3.7V | 3500mAh | KC | 10*50*62mm | Download | ||||
| UFX105065 | 3.7V | 4000mAh | KC | 10*50*67mm | Download | ||||
| UFX105085 | 3.7V | 5000mAh | KC | UL1642/UN38.3 | 10*50*87mm | Download | |||
| UFX105573 | 3.7V | 5000mAh | KC | 10*55*75mm | Download | ||||
| UFX124040 | 3.7V | 2000mAh | KC | EN62133 | 12*40*42mm | Download | |||
| UFX124060 | 3.7V | 3600mAh | KC | 12*40*62mm | Download | ||||
| UFX252040 | 3.7V | 170mAh | KC | 2.5*20*42mm | Download | ||||
| UFX301525 | 3.7V | 80mAh | KC | 3*15*27mm | Download | ||||
| UFX303040 | 3.7V | 320mAh | KC | 3*30*42mm | Download | ||||
| UFX303055 | 3.7V | 500mAh | KC | UN38.3/UL1642 | 3*30*57mm | Download | |||
| UFX373050 | 3.7V | 550mAh | KC | UN38.3 | 3.7*30*52mm | Download | |||
| UFX401242 | 3.7V | 100mAh | KC | 4*12*44mm | Download | ||||
| UFX401120 | 3.7V | 55mAh | KC | CB/UL1642/UN38.3 | 4*11*22mm | Download | |||
| UFX401230 | 3.7V | 110mAh | KC | 4*12*32mm | Download | ||||
| UFX401235 | 3.7V | 120mAh | KC | UL1642 | 4*12*37mm | Download | |||
| UFX401430 | 3.7V | 120mAh | KC | 4*14*32mm | Download | ||||
| UFX401430 | 3.7V | 130mAh | KC | 4*14*32mm | Download | ||||
| UFX402065 | 3.7V | 550mAh | KC | 4*20*67mm | Download | ||||
| UFX402780 | 3.7V | 1000mAh | KC | UL(tuv）1642/ROHS/CB | 4*27*82mm | Download | |||
| UFX402895 | 3.7V | 1200mAh | KC | 4*28*97mm | Download | ||||
| UFX402934 | 3.7V | 350mAh | KC | 4*29*36mm | Download | ||||
| UFX403441 | 3.7V | 650mAh | KC | 4*34*43mm | Download | ||||
| UFX501447 | 3.7V | 280mAh | KC | UN38.3 | 5*14*49mm | Download | |||
| UFX501535 | 3.7V | 200mAh | KC | 5*15*37mm | |||||
| UFX502025 | 3.7V | 200mAh | KC | UN38.3 | 5*20*27mm | ||||
| UFX502030 | 3.7V | 300mAh | KC | CE/UL(tuv）1642 | 5*20*32mm | ||||
| UFX502535 | 3.7V | 300mAh | KC | UN38.3/UL1642 | 5*25*37mm | ||||
| UFX502065 | 3.7V | 600mAh | KC | UL1642 | 5*20*67mm | ||||
| UFX502248 | 3.7V | 500mAh | KC | UL1642 | 5*22*50mm | ||||
| UFX502530 | 3.7V | 350mAh | KC | 5*25*32mm | |||||
| UFX502535 | 3.7V | 400mAh | KC | 5*25*37mm | |||||
| UFX502545 | 3.7V | 600mAh | KC | 5*25*47mm | |||||
| UFX502728 | 3.7V | 360mAh | KC | 5*27*30mm | |||||
| UFX503035 | 3.7V | 500mAh | KC | 5*30*37mm | |||||
| UFX503040 | 3.7V | 600mAh | KC | 5*30*42mm | |||||
| UFX503048 | 3.7V | 750mAh | KC | CB/UN38.3/UL(tuv）1642/ROHS | 5*30*50mm | ||||
| UFX503759 | 3.7V | 1200mAh | KC | UL1642/UN38.3/CE/CB | 5*37*61mm | ||||
| UFX504040 | 3.7V | 800mAh | KC | 5*40*42mm | |||||
| UFX505050 | 3.7V | 1500mAh | KC | 5*50*52mm | |||||
| UFX 505573 | 3.7V | 2500 mAh | KC | UL(tuv)1642 | 5*55*75mm | ||||
| UFX506090 | 3.7V | 3000 mAh | KC | UL1642 | 5*60*92mm | ||||
| UFX523450 | 3.7V | 1000 mAh | KC | CB/UN38.3/ROHS/UL(tuv)1642/UL(tuv)2054 | 5.2*34*52mm | ||||
| UFX552045 | 3.7V | 450mAh | KC | 5.5*20*47mm | |||||
| UFX601535 | 3.7V | 250mAh | KC | UN38.3 | 6*15*37mm | ||||
| UFX601720 | 3.7V | 150mAh | KC | 6*17*22mm | |||||
| UFX602030 | 3.7V | 300mAh | KC | UL1642/UN38.3/加洲65/CE/EN62133/ICE62133 | 6*20*32mm | ||||
| UFX602035 | 3.7V | 400mAh | KC | UL1642/UN38.3 | 6*20*37mm | ||||
| UFX602040 | 3.7V | 400mAh | KC | 6*20*40mm | |||||
| UFX602040 | 3.7V | 450mAh | KC | 6*20*47mm | |||||
| UFX602047 | 3.7V | 540mAh | KC | 6*20*49mm | |||||
| UFX602530 | 3.7V | 450mAh | KC | CE | 6*25*32mm | ||||
| UFX602535 | 3.7V | 500mAh | KC | IEC62133/UL(tuv)1642 | 6*25*37mm | ||||
| UFX603030 | 3.7V | 500mAh | KC | UL1642/UN38.3 | 6*30*32mm | ||||
| UFX603040 | 3.7V | 680mAh | KC | UL1642 | 6*30*42mm | ||||
| UFX603048 | 3.7V | 900mAh | KC | UL1642/UN38.3/IEC62133/CE | 6*30*50mm | ||||
| UFX603450 | 3.7V | 1200mAh | KC | UL1642 | 6*34*52mm | ||||
| UFX604050 | 3.7V | 1500mAh | KC | UL1642 | 6*40*52mm | ||||
| UFX604060 | 3.7V | 1700mAh | KC | UL1642 | 6*40*62mm | ||||
| UFX604070 | 3.7V | 2000mAh | KC | 6*40*72mm | |||||
| UFX605060 | 3.7V | 2000mAh | KC | CB/UN38.3 | 6*50*62mm | ||||
| UFX605080 | 3.7V | 3000mAh | KC | UL(tuv）1642/UN38.3 | 6*50*82mm | ||||
| UFX605473 | 3.7V | 3000mAh | KC | 6*54*75mm | |||||
| UFX606090 | 3.7V | 4000mAh | KC | UL(tuv）1642/ROHS/UN38.3 | 6*60*92mm | ||||
| UFX634169 | 3.7V | 2000mAh | KC | 6.3*41*69mm | |||||
| UFX641447 | 3.7V | 400mAh | KC | 6.4*14*47mm | |||||
| UFX651725 | 3.7V | 230mAh | KC | 6.5*17*27mm | |||||
| UFX653040 | 3.7V | 800mAh | KC | 6.5*30*42mm | |||||
| UFX654065 | 3.7V | 2000mAh | KC | UL1642/PSE/UN38.3/CE/CB | 6.5*40*67mm | ||||
| UFX686770 | 3.7V | 4000mAh | KC | 6.8*67*72mm | |||||
| UFX701330 | 3.7V | 200mAh | KC | ROHS/CE/UN38.3/UL(tuv）1642 | 70*13*32mm | ||||
| UFX701488 | 3.7V | 850mAh | KC | 7*14*90mm | |||||
| UFX701535 | 3.7V | 350mAh | KC | UL(tuv）1642/CE/ROHS/UN38.3/IEC62133/PSE | 7*15*37mm | ||||
| UFX702025 | 3.7V | 300mAh | KC | CE/加洲65/UN38.3/EN62133/UL(tuv）1642 | 7*20*27mm | ||||
| UFX702060 | 3.7V | 850mAh | KC | CE | 7*20*62 mm | ||||
| UFX702248 | 3.7V | 700mAh | KC | IEC62133 | 7*22*50mm | ||||
| UFX702248 | 3.7V | 800mAh | KC | 7*22*50 mm | |||||
| UFX702257 | 3.7V | 1000mAh | KC | L(tuv）1642/UN38.3 | 7*22*59 mm | ||||
| UFX703048 | 3.7V | 1000mAh | KC | UL1642/CB/ROHS | 7*30*50mm | ||||
| UFX703440 | 3.7V | 1000mAh | KC | 7*34*50mm | |||||
| UFX706090 | 3.7V | 5000mAh | KC | UL1642 | 7*60*92 mm | ||||
| UFX721944 | 3.7V | 630mAh | KC | UL(tuv)1642 | 7.2*19*46 mm | ||||
| UFX751635 | 3.7V | 380mAh | KC | 7.5*16*37mm | |||||
| UFX702035 | 3.7V | 500mAh | KC | 7.5*20*37 mm | |||||
| UFX753450 | 3.7V | 1300mAh | KC | UN38.3 | 7.5*34*52 mm | ||||
| UFX 756077 | 3.7V | 4800mAh | KC | CB/UN38.3/UL1642 | 7.5*60*79 mm | ||||
| UFX782150 | 3.7V | 800mAh | KC | 7.8*21*52mm | |||||
| UFX801350 | 3.7V | 500mAh | KC | UL(tuv)1642 | 8*13*52 mm | ||||
| UFX 801735 | 3.7V | 500mAh | KC | UN38.3 | 8*17*37mm | ||||
| UFX802030 | 3.7V | 400mAh | KC | UL1642/PSE | 8*20*32mm | ||||
| UFX802035 | 3.7V | 500mAh | KC | 8*20*37 mm | |||||
| UFX802040 | 3.7V | 600mAh | KC | UL(tuv）1642/CE/UN38.3 | 8*20*42 mm | ||||
| UFX802050 | 3.7V | 800mAh | KC | UL(tuv)1642/CB/UN3.83/CE | 8*20*52mm | ||||
| UFX802248 | 3.7V | 1000mAh | KC | 8*22*50mm | |||||
| UFX802528 | 3.7V | 480mAh | KC | UN38.3/CE/IEC62133 | 8*25*30mm | ||||
| UFX802528 | 3.7V | 500mAh | KC | UL1642/PSE/CB | 8*25*30mm | ||||
| UFX802530 | 3.7V | 600mAh | KC | UL1642/UL2054/CB | 8*25*32mm | ||||
| UFX802535 | 3.7V | 700mAh | KC | 8*25*37mm | |||||
| UFX803035 | 3.7V | 800mAh | KC | UL(tuv)1642 | 8*30*37mm | ||||
| UFX803040 | 3.7V | 900mAh | KC | 8*30*42mm | |||||
| UFX803048 | 3.7V | 1200mAh | KC | UL(tuv)1642/CB/CE/ROHS | 8*30*50mm | ||||
| UFX803448 | 3.7V | 1300 mAh | KC | 8*34*50mm | |||||
| UFX803450 | 3.7V | 1500mAh | KC | UL1642/CB/ROHS/CE/UN38.3 | 8*34*52mm | Download | |||
| UFX804050 | 3.7V | 1800mAh | KC | 8*40*50mm | |||||
| UFX804068 | 3.7V | 2500 mAh | KC | UL1642 | 8*40*70mm | ||||
| UFX805080 | 3.7V | 4000mAh | KC | 8*50*82mm | |||||
| UFX832248 | 3.7V | 920mAh | KC | UL(tuv)1642/UN38.3/EN62133 | 8.3*22*50mm | ||||
| UFX851768 | 3.7V | 850mAh | KC | UL(tuv)1642 | 8.5*17*69mm | ||||
| UFX901428 | 3.7V | 260mAh | KC | CE/CB | 9*14*30mm | ||||
| UFX901744 | 3.7V | 680mAh | KC | 9*17*46mm | |||||
| UFX902030 | 3.7V | 500mAh | KC | UL(tuv)1642/UN38.3/CE | 9*20*32mm | ||||
| UFX902035 | 3.7V | 600mAh | KC | 9*20*37mm | |||||
| UFX902248 | 3.7V | 1050mAh | KC | UN38.3/CE/IEC62133 | 9*22*50mm | ||||
| UFX902535 | 3.7V | 800mAh | KC | UL1642 | 9*25*37mm | ||||
| UFX903450 | 3.7V | 1600mAh | KC | 9*34*52mm | |||||
| UFX951768 | 3.7V | 1200mAh | KC | UL(tuv)1642/UN38.3 | 9.5*17*69mm | ||||
| UFX955565 | 3.7V | 5000mAh | KC | UL(tuv)1642/UN38.3 | 9.5*55*67mm | ||||
| UFX3060100 | 3.7V | 2000mAh | KC | UN38.3/EN62133/GB31241/UL(tuv)1642 | 3*60*100mm | ||||
| UFX4027110 | 3.7V | 1000mAh | KC | CB | 4*27*102mm | ||||
| UFX6080130 | 3.7V | 8000mAh | KC | CB/UL1642/PSE | 6*80*132mm | ||||
| UFX9559104 | 3.8V | 8000mAh | KC | UN38.3/ROHS/UL1642/GB31241报告/EN62133/CB/BIS | 9.5*59*106mm | ||||
| UFX162027-2P | 3.7V | 700mAh | KC | ROHS | 16*20*29mm | ||||
| UFX502025-4P | 3.7V | 800mAh | KC | 21*20*27mm | |||||
| UFX604040-2S | 7.4V | 1000mAh | KC | 13*40*43mm | |||||
| UFX102050-2S | 7.4V | 1000mAh | KC | 20*20*53mm | |||||
| UFX104050-2S | 7.4V | 2500mAh | KC | 20*40*52mm | |||||
| UFX124060-2S | 7.4V | 1700mAh | KC | 12*40*63mm | |||||
| UFX503450-2S | 7.4V | 1000mAh | KC | CB/ROHS | 10*34*52mm | ||||
| UFX603030-2S | 7.4V | 500mAh | KC | CB | 12*30*32mm | ||||
| UFX603450-2S | 7.4V | 1200mAh | KC | CB/UN38.3 | 12*34*52mm | ||||
| UFX702257-2S | 7.4V | 1000mAh | KC | CB/UN38.3 | 14*22*59mm | ||||
| UFX804068-2S | 7.4V | 2500mAh | KC | CB | 16*40*70mm | ||||
| UFX6067101-3S | 11.1V | 5800 mAh | KC | CB/UN38.3/ROHS | 18*67*103mm | ||||
| UFX18650-2S2P | 7.4V | 5200mAh | KC | ||||||
| UFX18650-3S | 11.1V | 2600mAh | KC | CB/UN38.3 | |||||
